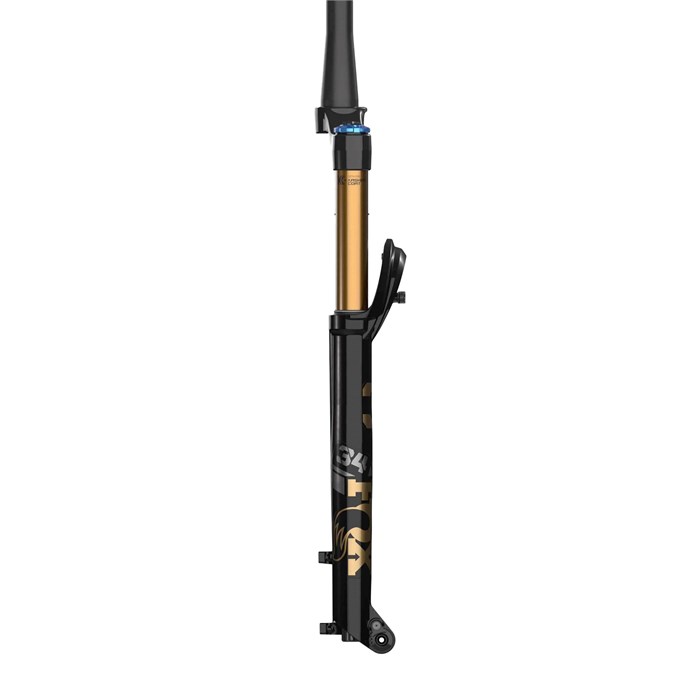

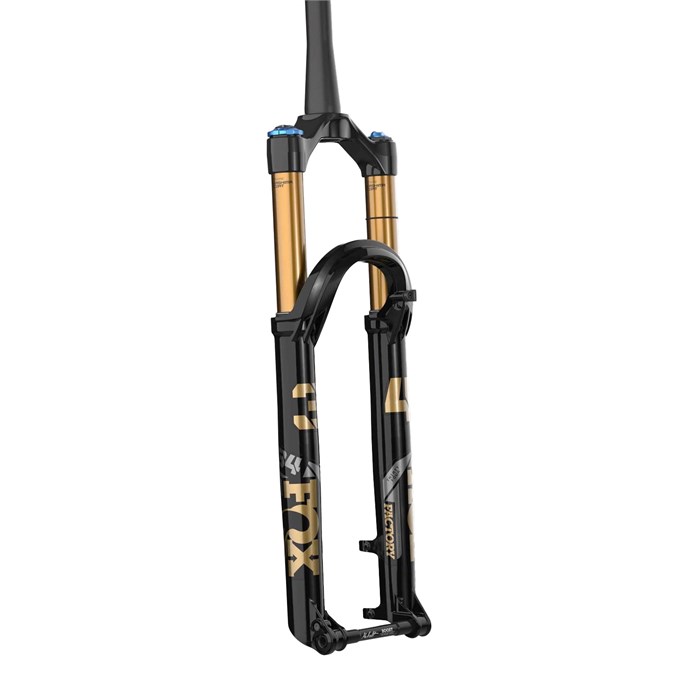

Fox Shox 34 Float Factory GRIP X Fork - 29" - Used

Product Details

Construction & Measurements

Kashima Coated Stanchions– The smoothest of the smooth, plus it looks cooler. The gold Kashima coating has become synonymous with friction-free suspension actuation, and it´s only available on Fox Factory components.

Lower Leg Channels– As a fork compresses, the air volume within the lower legs decreases, increasing air pressure. The more the fork compresses, the more pressure increases. This effect can have the unintended consequence of preventing full travel from being achieved. Fox´s lower leg channels help alleviate this issue by dramatically increasing air volume within the lower legs and thereby reducing the amount of additional unintended pressure ramping. Another benefit of these channels is that lower leg bath oil is circulated to the upper reaches of the lower legs, continuously lubricating the foam rings and bushings as the fork compresses and extends through its travel.

Lower Leg Arch– Stiffness-to-weight is the ultimate metric for bicycle design. Engineers invest countless hours poring over every ounce of material in an effort to optimize this critical ratio. Fox´s lower leg design pulls out all the stops, shaving every possible gram while making sure not to compromise stiffness or strength requirements of modern enduro and gravity style riding.

1.5" Tapered Aluminum Steerer

Features

Kabolt X Axle– Kabolt, a lightweight bolt-on floating axle to shave grams and increase torsional stiffness via a sleeveless, single-sided pinch bolt design.

FLOAT EVOL Air Spring– EVOL technology increases negative air spring volume, optimizing small bump sensitivity. EVOL’s linear spring curve delivers plushness off the top, extra mid-stroke support, and more tunable bottom-out progression.

Rotor Size– 180 Direct Post Mount, Up to 203 Compatible

Adjustments

GRIP X Damper– Trail and all-mountain riders no longer need to choose between a descent-focused damper or a lightweight endurance damper. GRIP X exudes exemplary descent performance, refined for less weight, easier set up and an easy access firm mode for pedaling efficiency.

Fork Adjustments– Rebound, High / Low Speed Compression, Firm Mode

Specs

• Used For: Trail More

  Used For



  TrailTrail bikes are the quintessential “mountain bikes.” If you’re heading into the woods expecting to do it all on two wheels – climbing, technical sections, AND fun descents – you’re looking for a trail bike.



• Wheel Size: 29"
• Axle Configuration: 15 x 110 Boost
• Stanchion Diameter (mm): 34
• Maximum Rotor Size (mm): 203
• Warranty: 1 Year
