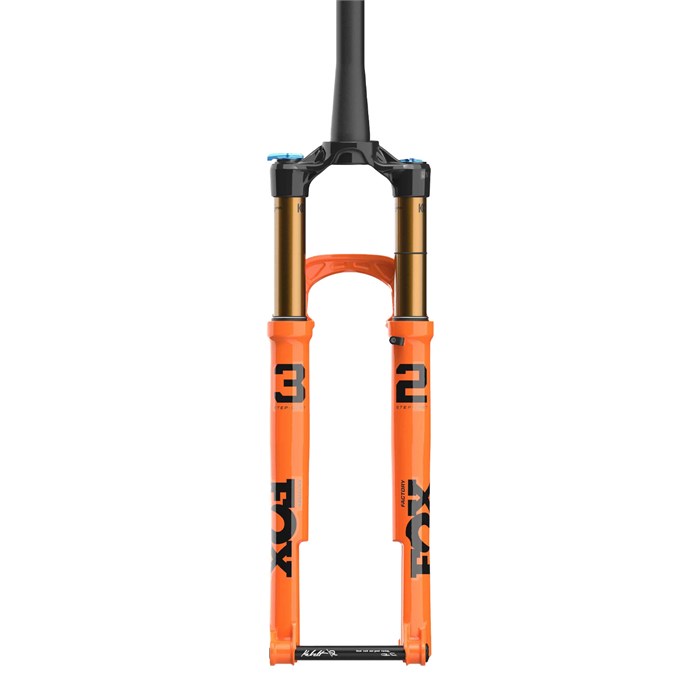

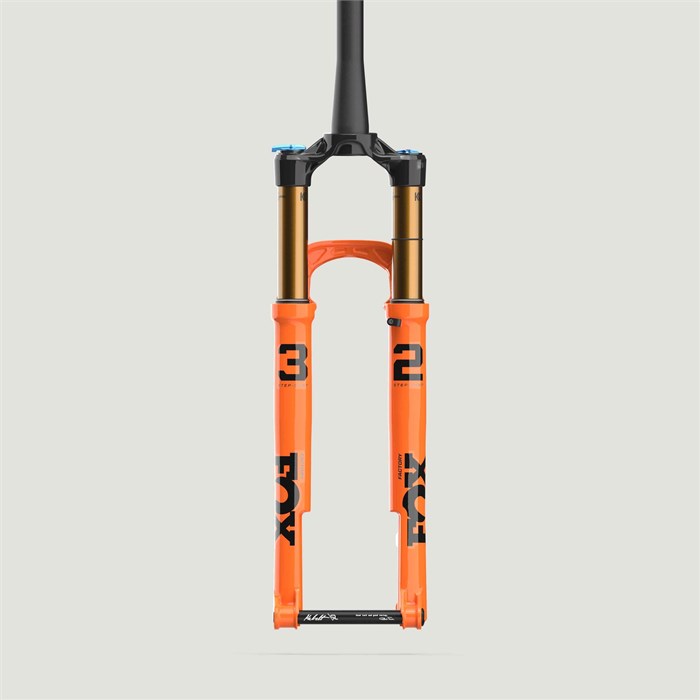

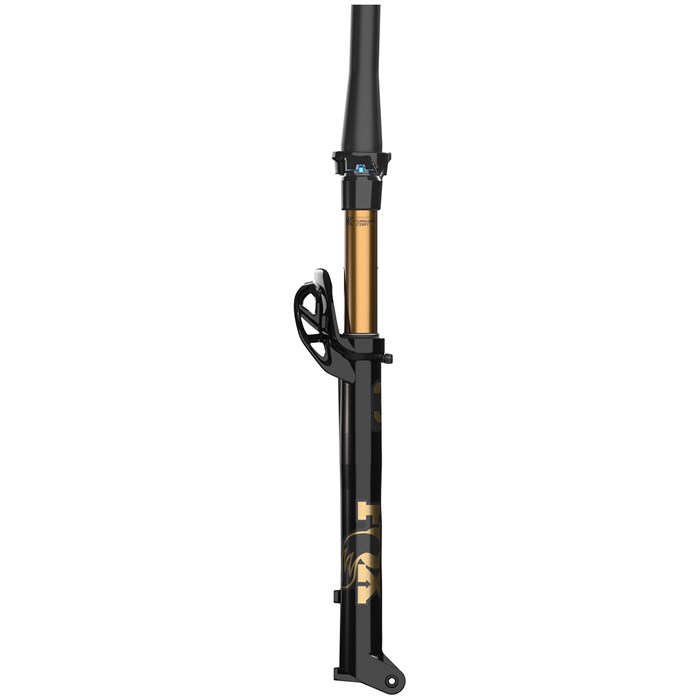

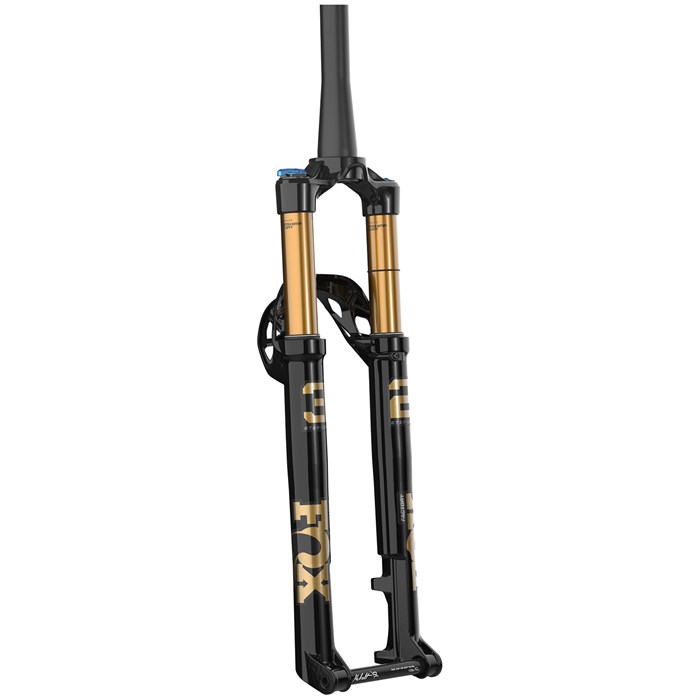

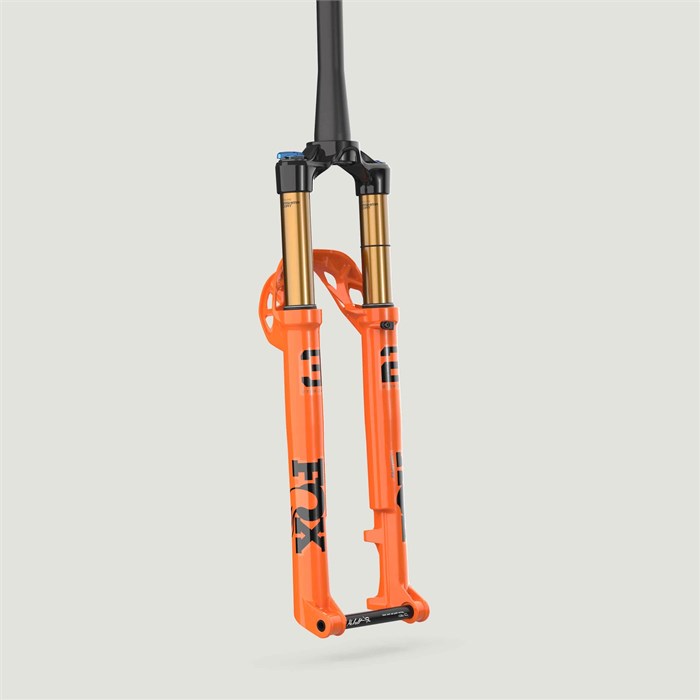

Fox Shox 32 Float SC Factory GRIP SL Fork - 29"

Product Details

Construction & Measurements

Kashima Coated Stanchions– The smoothest of the smooth, plus it looks cooler. The gold Kashima coating has become synonymous with friction-free suspension actuation, and it´s only available on Fox Factory components.

Lower Leg Channels– As a fork compresses, the air volume within the lower legs decreases, increasing air pressure. The more the fork compresses, the more pressure increases. This effect can have the unintended consequence of preventing full travel from being achieved. Fox´s lower leg channels help alleviate this issue by dramatically increasing air volume within the lower legs and thereby reducing the amount of additional unintended pressure ramping. Another benefit of these channels is that lower leg bath oil is circulated to the upper reaches of the lower legs, continuously lubricating the foam rings and bushings as the fork compresses and extends through its travel.

New Rear Arch Matrix– The rear arch matrix was generatively designed to increase torsional stiffness by 40% over the previous 32 SC while minimizing weight. With the new 32 SC being available in 100mm travel only, the rear arch has all the necessary clearance for XC frames.

New 7000 Series Aluminum Crown– Fox gave the 32 SC a new 7000 Series aluminum crown, utilizing geometry that maintains strength while dropping nine grams. The crown has zero offset with angled stanchions to achieve the 44mm rake, reducing the amount of aluminum needed.

1.5" Tapered Aluminum Steerer

Features

FLOAT EVOL Air Spring– EVOL technology increases negative air spring volume, optimizing small bump sensitivity. EVOL’s linear spring curve delivers plushness off the top, extra mid-stroke support, and more tunable bottom-out progression.

Kabolt SL Axle– Kabolt SL, a lightweight bolt-on floating axle to shave grams and increase torsional stiffness via a sleeveless, single-sided pinch bolt design.

Rotor Size– 160 Direct Post Mount, Up to 180 Compatible

Adjustments

GRIP SL Damper– The GRIP SL is an incredibly light, short travel-specific damper that not only saves weight, but provides an unparalleled ride feel in its class. Riders experience a supple stroke with an optimized pedal-to-bump efficiency, as well as a smooth blowoff force in lockout mode to reduce rider fatigue.

Fork Adjustments– 3-Position Firm / Middle / Open Mode

Specs

• Used For: Cross Country More

  Used For



  Cross CountryWith speed and pedaling efficiency in mind, cross country (XC) bikes are the lightest mountain bikes with the least suspension travel (typically 0 - 120mm).



• Wheel Size: 29"
• Axle Configuration: 15 x 110 Boost
• Stanchion Diameter (mm): 32
• Maximum Rotor Size (mm): 180
• Weight (g): 1287
• Warranty: 1 Year
