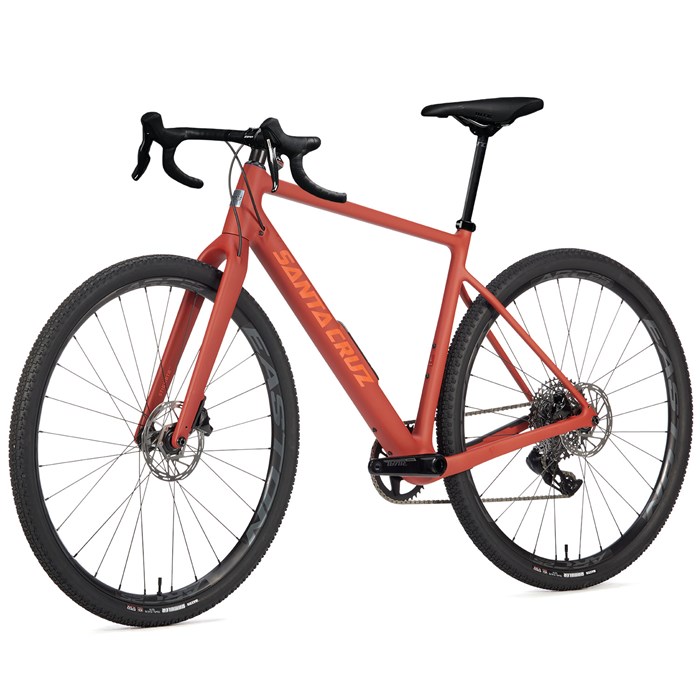

Santa Cruz Stigmata CC Rival AXS 1x 700c Complete Bike 2024

Product Details

Frame and Fork

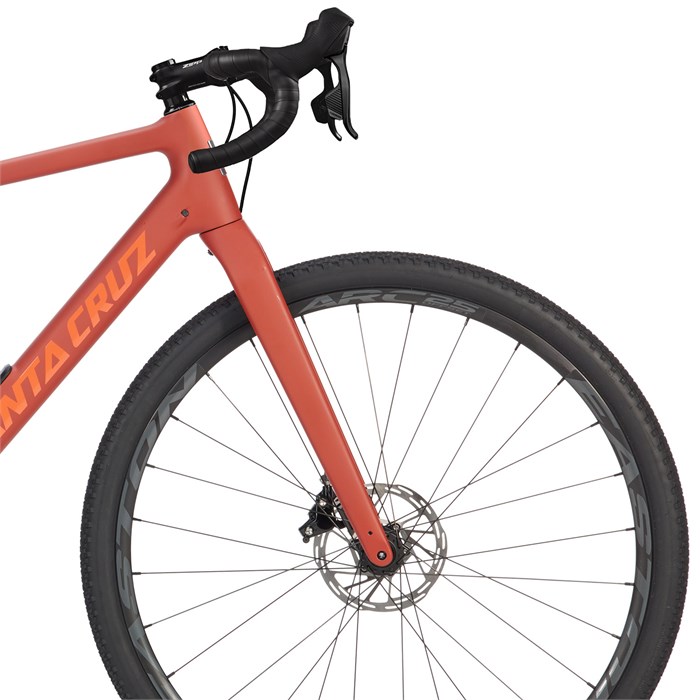

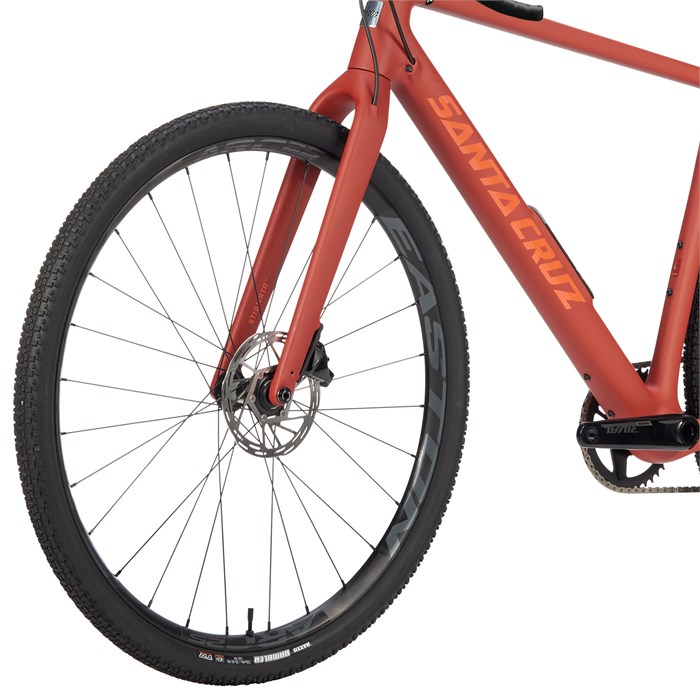

Carbon CC Frame and Fork– Santa Cruz´s highest grade of carbon makes for a bike that is incredibly lightweight, strong, and comfortable. With knowledge gained from years of mountain bike innovation, this frameset is stiff yet has great offroad feel.

Three Water Bottle Cage Mounts– With two inside the front triangle and one on the underside of the downtube, you´ll never want for storage.

50mm Tire Clearance

Threaded Bottom Bracket

12mm Thru-Axle

Suspension Corrected Geometry for Longer Axle-Crown of 40mm Gravel Suspension

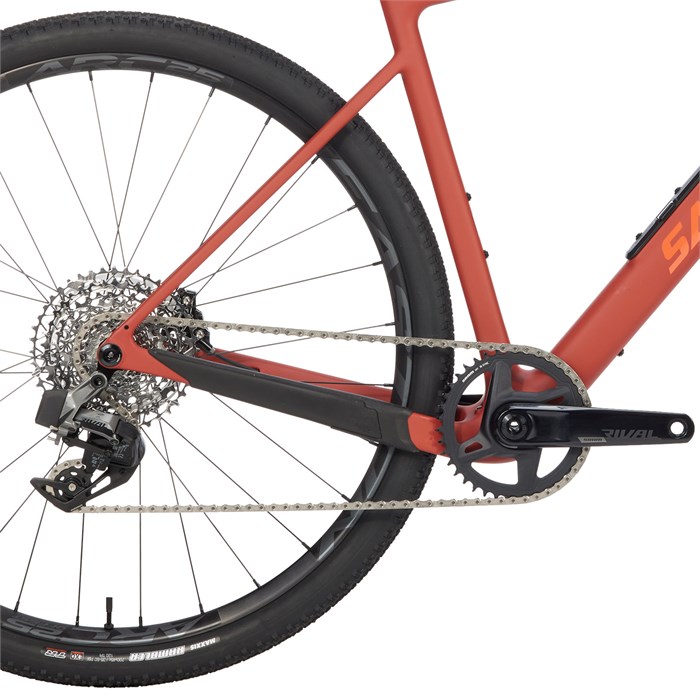

Drivetrain

SRAM Rival eTap AXS– Experience a better bike ride. SRAM Rival eTap AXS features the technology modern riders want—intuitive wireless shifting, innovative gearing, integrated power measurement, AXS connectivity, and refined hydraulic disc brakes. It’s low on complexity, but rich with features.

Brakes

SRAM Rival AXS– Wireless shifting and the best hydraulic disc braking anywhere, plus revolutionary eTap shift logic. What more could you want? The hood shape is optimized to fit hands of all sizes, for comfortable and controlled braking from any position. AXS technology means personalization is in your hands.

Avid Centerline Centerlock Rotors | 160mm

Wheelset

Maxxis Rambler EXO Tires– With numerous race wins under its belt and untold miles of backroad adventures, the Rambler is Maxxis´s most popular gravel offering. Tightly-packed center knobs are ramped for rolling efficiency on hardpack roads and asphalt. The cornering knobs are spaced farther apart for control in variable conditions.

Easton ARC Offset 25 with DT Swiss 370 Hubs

Additional Features

Glovebox– Stash snacks and tools in the bike, not on the body or in rattle-y bags.

Price and Spec Subject to Change

27.5 Dropper Post Compatible (1x Only)

Universal Derailleur Hangar

Specs

• Gender: Unisex
• Recommended Use: Cyclocross, Gravel
• Biking Type: Gravel/Adventure More

  Biking Type



  Gravel/AdventureGravel/Adventure bikes are versatile machines designed for exploring mixed terrain, combining elements of road and mountain bike frames for comfort and stability. They offer traction and stability on various surfaces. Whether on gravel roads, light trails, or city streets, these bikes provide a perfect balance between comfort, performance, and versatility.



• Bike Style: Cyclocross, Gravel, XC
• Wheel Size: 700c
• Gearing: 1 x 12
• Frame Material: Carbon More

  Frame Material



  CarbonCarbon is a composite frame material. Unlike metals, carbon is composed of fibrous strands woven into a grid and bonded with epoxy. Carbon is favored by many for its lightness and stiffness but its complexity in fabrication makes it the most expensive option.



• Fork Material: Carbon
• Shifters: SRAM Rival eTap AXS More

  Shifters


  SRAM Rival eTap AXSCompatible with AXS drivetrains, this wireless shifter has an ergonomic "click and fire" two button design, and ergonomics that´ll have your thumbs feeling great.

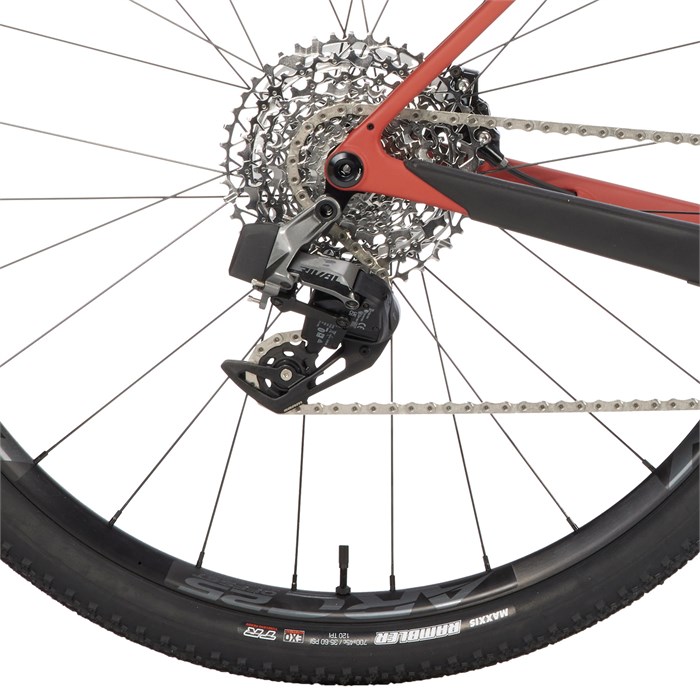

• Rear Derailleur: SRAM Rival XPLR eTap AXS, 12-Speed More

  Rear Derailleur


  SRAM Rival XPLR eTap AXS, 12-SpeedThe Rival XPLR eTap AXS rear derailleur is a dedicated 1x-specific unit designed for use with the XPLR 10-44 cassette. It makes for an uncluttered drivetrain that takes on pavement and singletrack with equal aplomb. Wireless and proven eTap shift logic, AXS connectivity and advanced chain management mean this derailleur does exactly what you want when you need it.

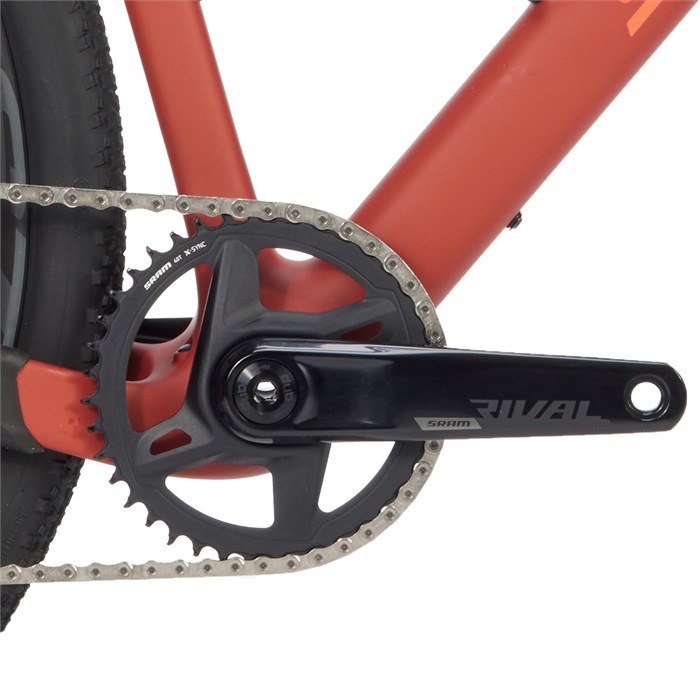

• Crankset: SRAM Rival 1 Wide, 40t More

  Crankset


  SRAM Rival 1 Wide, 40tElegant and secure direct-mount X-SYNC chainrings from the company that originated the 1x drivetrain for the ultimate in consistent chain control over the long haul.

  FEATURES
  • Direct mount chainrings in 38T through 46T
  • DUB bottom bracket adds durability and simplicity
  • Wide chainline crankset to fit the biggest gravel tires
  • Longer DUB crank spindle accommodates both Road and MTB width frame bottom bracket standards for unmatched cross-compatibility across brands
  • Compatible with 135, 142 and BOOST rear spacing



• Bottom Bracket: RAM DUB 68mm Road Wide
• Pedals: Not Included
• Cassette: SRAM XPLR XG-1251, 10-44t More

  Cassette


  SRAM XPLR XG-1251, 10-44tMake that daily ride from your front door a little spicier with some dirt. The 440% range of the XPLR XG-1251 cassette provides smooth gear progression when you’re sweating up gravel climbs, and tight jumps on the high end for when it’s time to drill it on asphalt. Shift features on each cog are optimized for electronic shifting, so you’ll get fast, smooth and precise shifts every time.

  FEATURES
  • X-Range gearing gives you more range and a smoother gear progression, so you’re always in the right gear
  • 440% range gives the coverage 1x gravel riders want
  • For use with XPLR 1x rear derailleurs
  • Compatible with Flattop chains
  • Compatible with XDR driver body
  • MINI CLUSTER technology for light weight and durability



• Chain: SRAM Rival, 12-Speed More

  Chain


  SRAM Rival, 12-SpeedThe Flattop technology of the SRAM Rival chain creates a lighter, quieter, stronger chain that’s compatible with 12-speed 1x and 2x eTap AXS drivetrains. Ride far, long and fast—this chain can go the distance.

  FEATURES
  • Flattop technology allows for a narrower chain with quieter operation and increased strength and durability
  • Use for both 1x and 2x eTap AXS
  • Includes Flattop PowerLock



• Brake Levers: SRAM Rival More

  Brake Levers


  SRAM RivalWireless shifting and the best hydraulic disc braking anywhere, plus revolutionary eTap shift logic. What more could you want? While SRAM could have stopped there, they went further and optimized the hood shape to fit hands of all sizes, for comfortable and controlled braking from any position. AXS technology means personalization is in your hands.


• Brake Calipers: SRAM Rival AXS
• Rotors: SRAM Paceline 160mm Centerlock
• Headset: Cane Creek 40 IS Integrated Headset

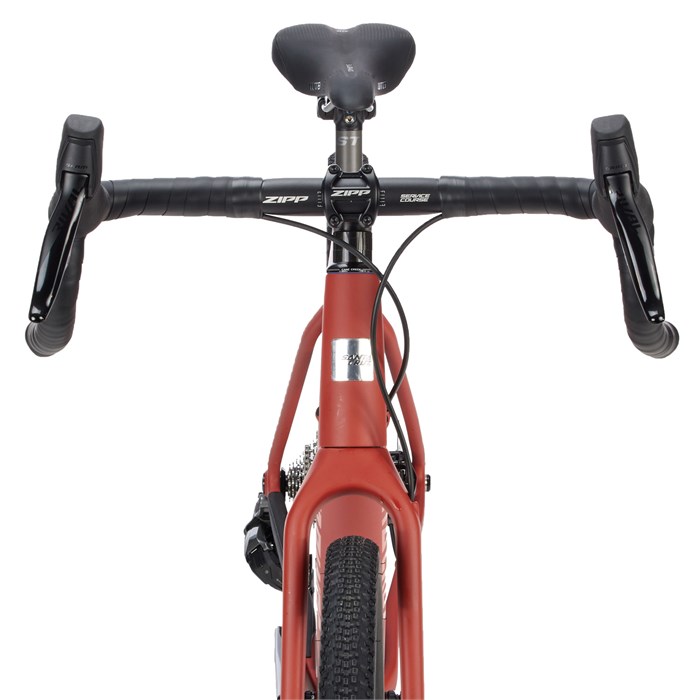

• Handlebar: Zipp Service COurse 70 XPLR
• Stem: Zipp Service Course Stem 70mm
• Saddle: WTB Silverado Medium, CroMo
• Seatpost: Easton EC70 More

  Seatpost


  Easton EC70The EC70 Seatpost takes Easton´s superlight unidirectional carbon and applies their patent pending ISA technology - Independent Saddle Adjustment - which allows for completely independent fore-aft adjustment and saddle adjustment. With the 2 pitch adjustment bolts, the saddle angle gets locked into place as if you were adjusting limit screws, and unlike single bolt designs, you get adjustability and security.


• Hubs: DT Swiss 370
• Rims: Easton ARC Offset 25 700C
• Tires: Maxxis Rambler | 700x45c
• Warranty: Lifetime Warranty (Frame Only)
