Devinci Hatchet Carbon Apex1 11s Complete Bike 2024

Product Details

Key Features

Carbon Frame

Wheel Size– 700c

Big Tire Clearance– 700c x 45mm / 650b x 2.1´´ tire clearance for mud ejection and traction when venturing off the pavement

MTB Inspired Geometry– Pulling from Devinci´s MTB playbook, Hatchet syncs a longer top tube with a shorter stem for optimal riding position, precision steering and unwavering stability on steep descents

The Intake Port– State-of-the-art intake port complies with all brake configurations for streamlined frame aesthetics and enhanced ease of use

Internal Cable Routing– Uses full hose to keep debris out and for longer-lasting, silky smooth shifting

Front Derailler Mount Cover– Ultra-clean aesthetics when using 1x drivetrain

4x Mount Options– Top tube mount, 2x bottle cage in the frame and 1x under the DT

Dual Core Fusion - Gravel Spec– Dual Core engineering strengthens the bottom half of the bike with a carbon blend and a dynamic tube-shape design for better power transfer and lateral stiffness, while the top half design delivers compliance and comfort for improved overall handling

386 EVO BB– Stiffest option with larger, more durable bearings while running standard 30mm axle crankset

Fork with Capped Axle, Internal Fender Mount and Discrete Rack Mount– Streamlined, debris shunning capped-axle fork. Frame and fork feature internal fender- and discrete rack-mounts for fast, clean aesthetics

BB Interchange– Ingenious BB Interchange provides quick access to frame internals for easy cable routing, assembly and maintenance.

Specs

• Gender: Unisex
• Recommended Use: Gravel
• Biking Type: Gravel/Adventure More

  Biking Type



  Gravel/AdventureGravel/Adventure bikes are versatile machines designed for exploring mixed terrain, combining elements of road and mountain bike frames for comfort and stability. They offer traction and stability on various surfaces. Whether on gravel roads, light trails, or city streets, these bikes provide a perfect balance between comfort, performance, and versatility.



• Bike Style: Gravel
• Wheel Size: 700c
• Weight (lbs): 20.02
• Weight (kg): 9.08
• Gearing: 1 x 11
• Frame Material: Carbon More

  Frame Material



  CarbonCarbon is a composite frame material. Unlike metals, carbon is composed of fibrous strands woven into a grid and bonded with epoxy. Carbon is favored by many for its lightness and stiffness but its complexity in fabrication makes it the most expensive option.

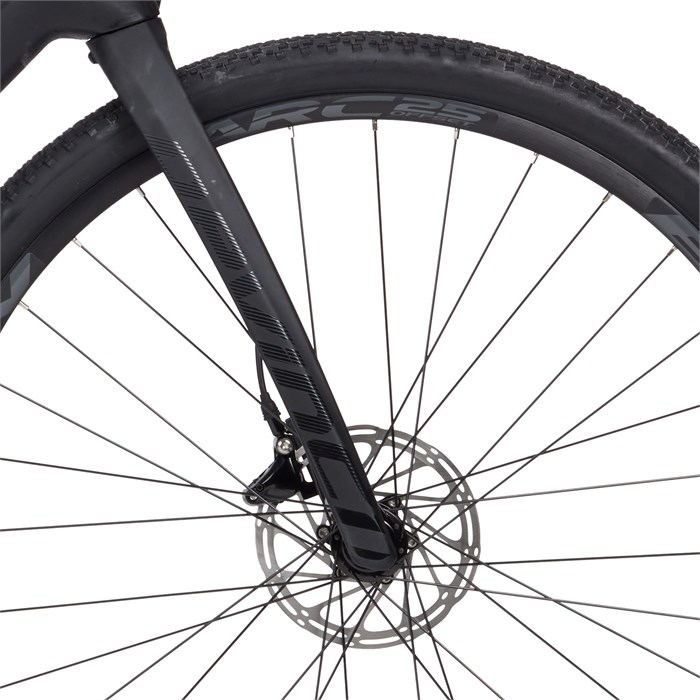

• Fork: Carbon
• Fork Material: Carbon
• Shifters: SRAM Apex 1 More

  Shifters


  SRAM Apex 1The Apex mechanical shift-brake control gives you all the gears you need in the palm of your hand. It´s technology that makes cycling easier-so you can tune into the experience and build on it.

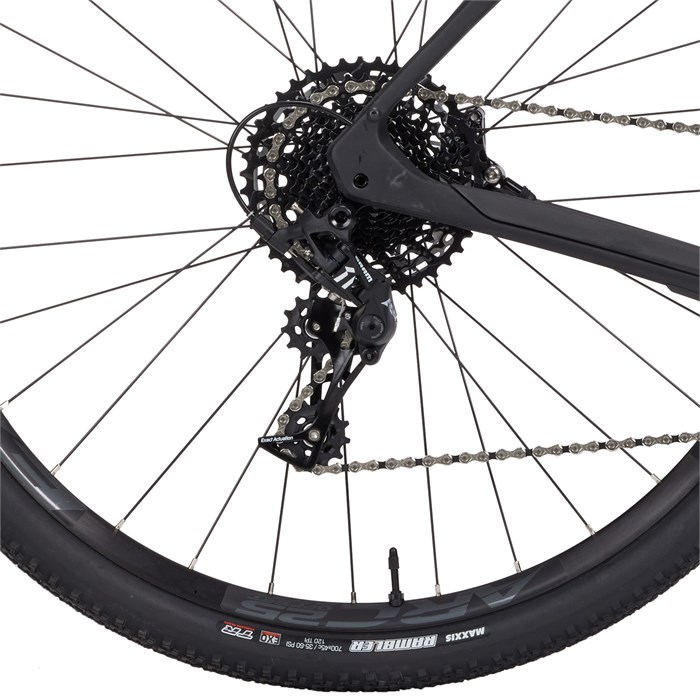

• Rear Derailleur: SRAM Apex 1, 11-Speed More

  Rear Derailleur


  SRAM Apex 1, 11-SpeedSRAM´s Apex 1 drivetrain provides the gear range and the shifting simplicity to let you simply go where you want. The Apex 1 rear derailleur makes that gearing choice a reality with clean, crisp shifts, thanks to SRAM´s X-HORIZON™ geometry and ROLLER BEARING CLUTCH™.

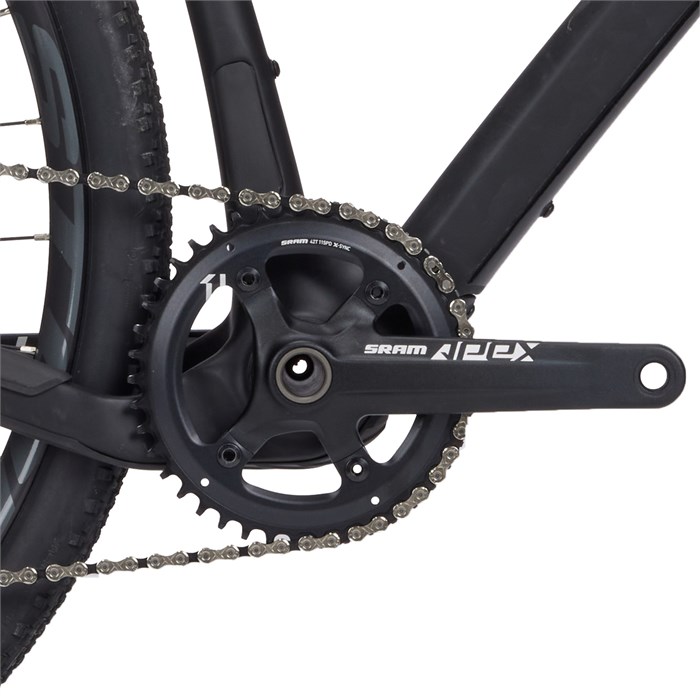

• Crankset: SRAM Apex 1, 42t More

  Crankset


  SRAM Apex 1, 42tThe Apex 1 crankset completes the Apex 1 group, SRAM´s most affordable road 1x™ drivetrain yet. Using patented X-Sync™ technology, the Apex 1 crankset runs silent and secure. Riders looking for a wide gear range and shifting simplicity at a great value will find it in Apex 1.

  FEATURES
  • SRAM 1x™ road 10-speed and 11-speed compatible
  • Available with 40T, 42T, 44T chainrings
  • Aluminum chainring and crankarms
  • Patented X-Sync™ chainring technology provides unparalleled chain retention as part of a complete SRAM 1x™ system
  • Integrated 4-arm, asymmetric spider maximizes stiffness to weight
  • Greater frame and tire clearance than other road cranks, 2mm per side



• Bottom Bracket: FSA BB386/PF30 | Pressfit
• Pedals: Not Included
• Cassette: SRAM PG-1130, 11-42t More

  Cassette


  SRAM PG-1130, 11-42tNo matter what kind of 11-speed drivetrain you have—2x, 1x, wide-range or narrow-range—an array of PG-1130 cassette options are available with smooth, consistent shift performance at an affordable price. Personalize your gearing with one of five available PG-1130 cassettes featuring SRAM PowerGlide™ II shift technology.

  FEATURES
  • Compatible with all SRAM 11-speed chains
  • 11-42t cassette fits 10 and 11-speed non-XD™ driver bodies (1.85mm spacer is required for 11-speed drivers
  • Compatible with 11-speed road splined driver bodies
  • 11-26t, 11-28t, 11-32t cassettes feature heat-treated steel cogs with aluminum spider
  • 11-36t and 11-42t cassettes are compatible with 1x drivetrains only
  • PowerGlide™ shift technology for smooth and positive shift performance
  • Wide range of gearing options—a perfect fit for any ride
  • Compatible with non-XD™ driver bodies



• Chain: KMC X11, 11-Speed More

  Chain


  KMC X11, 11-SpeedThe KMC X-Series has been designed with the specific characteristics of the Shimano, SRAM, and Campagnolo systems in mind and will meet the most demanding requirements. Elaborately designed and manufactured, the X-Bridge technology, thanks to precisely chamfered plates, allows a smooth propulsion and perfect gear changes in all driving situations.


• Brake Levers: SRAM Apex 1 More

  Brake Levers


  SRAM Apex 1Apex is the group that knows how to have a good time. Wide-range 1x gearing for gravel, bikepacking, adventure, casual cruises, and everything in between. With wireless AXS or classic DoubleTap mechanical shifting, XPLR or Eagle gearing, Apex connects you to your bike with smooth and reliable shifting, chain retention, and controlled and powerful hydraulic braking. Apex is simple to understand and easy to use, keeping the focus on what matters most – finding the fun.


• Brake Calipers: SRAM Apex 1
• Rotors: SRAM Centerline | Centerlock | 160mm
• Headset: FSA Orbit | C40 | Integrated

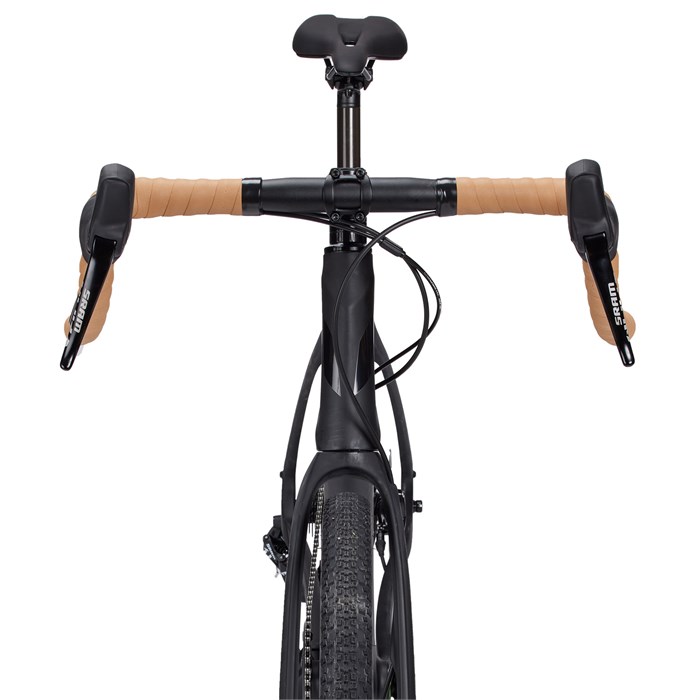

• Handlebar: V2 Pro | B:31.8mm | R:70mm | D:125mm | F:12°
• Bar Tape/Grips: Super Soft
• Stem: V2 Pro | B:31.8mm | 6°
• Saddle: V2 Pro
• Seatpost: V2 Elite Carbon 27.2mm
• Hubs: Front: Formula CL-712 | Sealed | Centerlock | TA 12x100mm / Rear: Formula RXC-142A | Sealed | Centerlock | TA 12x142mm | SH
• Rims: Easton ARC25 | 25mm inner | TR
• Spokes: Sapim Stainless 14G w/Nylok
• Tires: Maxxis Rambler | 700x45c | EXO TR
• Warranty: Limited Lifetime
