Revel Rascal V2 GX Complete Mountain Bike 2024

Product Details

Key Features

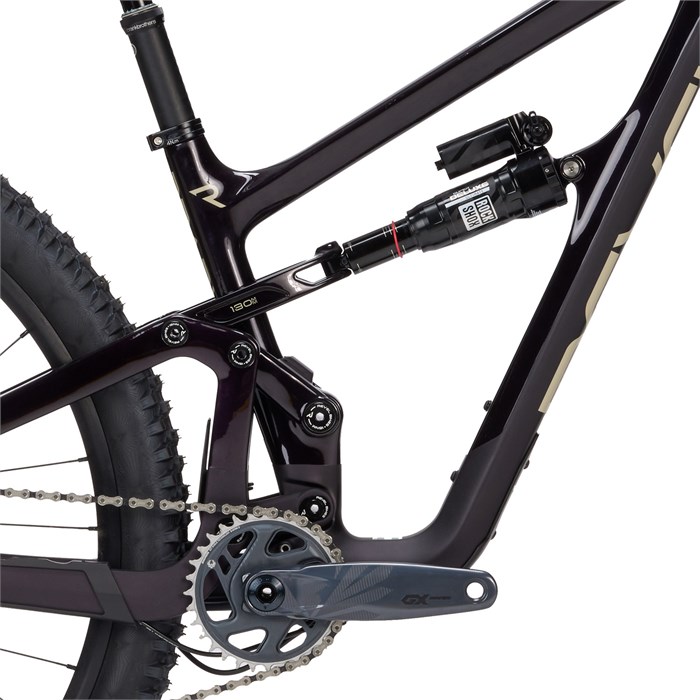

Thermoset Carbon Fiber Frame– Revel uses a mix of Japanese Toray T700 and T800 fibers in their frames, but the real magic is in the angles. Most bike frames use a selection of 0-, 45-, and 90-degree fibers, since these are the most readily available and easiest to work with. Revel frames are optimized using more 30/60-degree fibers, which, when laid up properly, create stronger and stiffer tubing and shapes, using less material.

Travel– 140mm Front / 130mm Rear

Wheel Size– 29"

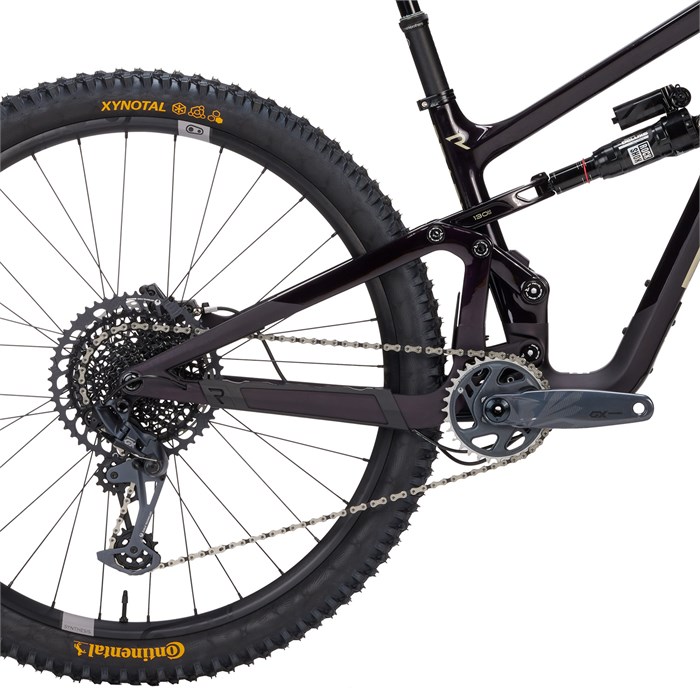

Canfield Balance Formula– CBF™ focuses on designing rear suspension around the Center of Curvature (CC). Until now, most suspension systems have focused solely on the instant center. CBF points the chain-line and corresponding drive forces around the top of the chainring through 100 percent of the travel. This results in maximum pedaling efficiency regardless of terrain, where you are in the travel, or what kind of power you’re putting down.

Internal Cable Routing– Revel’s full-carbon tubes are molded in one piece onto the inside of the carbon frame tubes. Not only does this provide structural improvement to the frame, but also allows you to route an entire frame in about a minute. No rattling, no noise, and no fishing cables out of frames.

UDH– SRAM´s UDH derailleur hanger has been incorporated to keep Ranger compatible with the latest and greatest drivetrain technologies.

Specs

• Biking Type: Mountain More

  Biking Type



  MountainMountain bikes are built for tackling rough terrain with frames made of durable materials like aluminum or carbon fiber, ensuring stability and maneuverability. They feature suspension to absorb impacts from rocks, roots, and drops, providing a smoother ride.



• Used For: Trail More

  Used For



  TrailTrail bikes are the quintessential “mountain bikes.” If you’re heading into the woods expecting to do it all on two wheels – climbing, technical sections, AND fun descents – you’re looking for a trail bike.



• Suspension: Full Suspension More

  Suspension



  Full SuspensionEngineered to tackle the most challenging terrain with enhanced comfort and control. Unlike hardtail bikes, full suspension bikes feature both front and rear suspension systems that allow the wheels to move independently from the frame.



• Frame Material: Carbon More

  Frame Material



  CarbonCarbon is a composite frame material. Unlike metals, carbon is composed of fibrous strands woven into a grid and bonded with epoxy. Carbon is favored by many for its lightness and stiffness but its complexity in fabrication makes it the most expensive option.



• Gearing: 1 x 12
• Water Bottle Mounts: 1

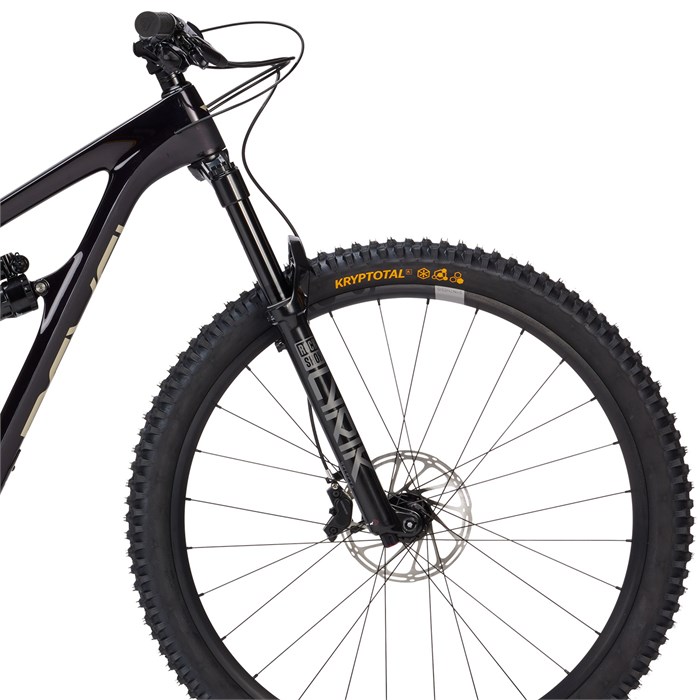

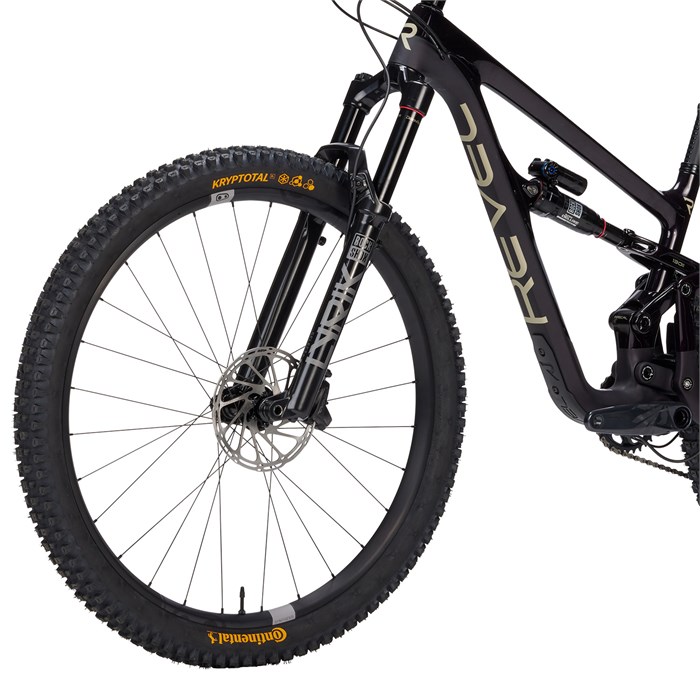

• Fork: RockShox Lyrik Select+ More

  Fork


  RockShox Lyrik Select+Faster. Stronger. Ruthlessly efficient. The new Lyrik is the most versatile fork in our lineup, built on a deep foundation of adventure. With an up-for-anything, down-for-it-all attitude, Lyrik Select+ features a new lightweight 35mm chassis with all-new Charger 3 RC damper, and the confidence-inspiring new DebonAir+ air spring. Let the new Lyrik sing.


• Stanchion Diameter (mm): 35
• Fork Travel (mm): 140
• Rear Shock: Rockshox Super Deluxe Ultimate More

  Rear Shock


  Rockshox Super Deluxe UltimateIn it to win it? Super Deluxe Ultimate is the smart bet for the podium. Packed to the hilt with fine-tuning adjustments that meaningfully improve suspension performance, it’s the most advanced shock RocShox have ever made. Pioneering one of the most impactful innovations in damper history, the new RC2T damper allows for 100% independent High Speed and Low Speed Compression adjustments, rounding out an arsenal of elite technology.

  Shock Adjustments - Separate and Independent Open and Threshold Pistons / Low Speed Compression Adjustment / Rebound Adjustment / Air Spring Pressure



• Rear Travel (mm): 130
• Shifters: SRAM GX Eagle More

  Shifters


  SRAM GX EagleWith intuitive thumb actuated triggers, the GX Eagle shifter´s positive feel gives the rider input to make shifts crisp and discernible every time. Its legendary reliability continues for all-day epics and all-time experiences, with an aluminum trigger ready for inevitable punishment and MatchMaker X compatibility.

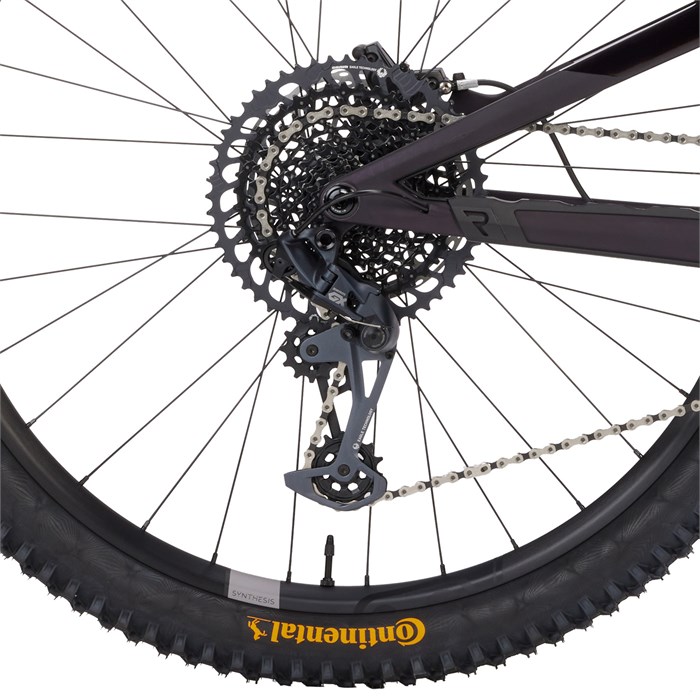

• Rear Derailleur: SRAM GX Eagle, 12-Speed More

  Rear Derailleur


  SRAM GX Eagle, 12-SpeedThe GX Eagle derailleur gets it done with an updated cage architecture that improves chain management. Refined to work with the new 10-52t cassettes, it’s also backwards compatible for the 10-50t versions.

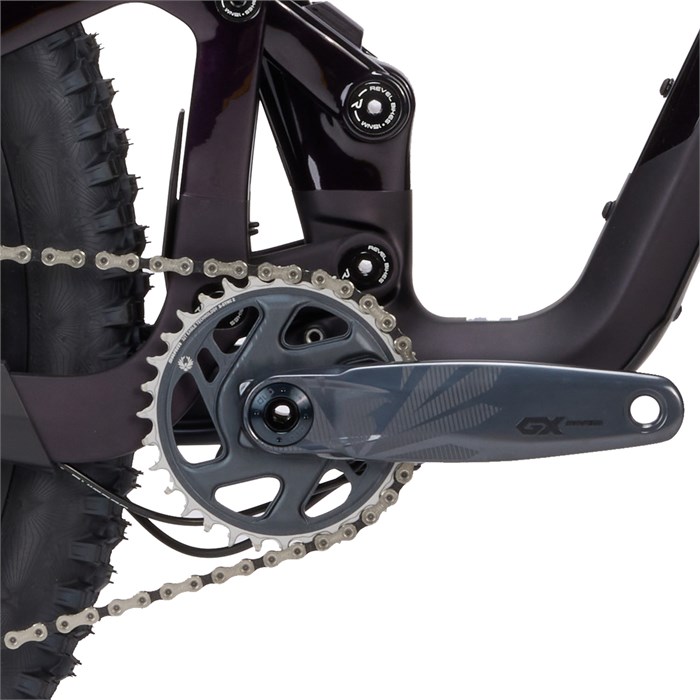

• Crankset: SRAM GX Eagle DUB, 32t More

  Crankset


  SRAM GX Eagle DUB, 32tSome riders test their limits more than others. For these riders, the GX Eagle DUB crankset allows them to go all in, every day they ride. The best aluminum crankset we make, engineered to deliver consistent performance every ride. Featuring our X-SYNC 2 tooth profile chainring for complete chain control. Each tooth´s thickness is toleranced and controlled to work seamlessly with the chain´s inner and outer links. DUB technology’s spindle design and bottom bracket provides a uniform approach to fitment, better sealing and forward and backward compatibility. Simply put, the forged aluminum GX Eagle DUB crankset is the no frills choice of riders who know.

  FEATURES
  • SRAM´s best aluminum crankset.
  • Direct mount interface compatible with chainrings across the entire Eagle Ecosystem.
  • Signature GX colorway as part of Eagle Colorsystem – pairs with all cassettes and chains, from Black to Gold to Rainbow to HardChrome and all-new Copper.



• Cassette: SRAM GX Eagle XG-1275, 10-52t More

  Cassette


  SRAM GX Eagle XG-1275, 10-52tThe new 10-52 Eagle cassette for riders who prioritize all day function over anything else. With an expanded, 520-percent gear range giving riders more ability to spin and recover on the burliest climbs. Featuring FULL PIN technology that uses lightweight, precision engineered steel cogs permanently connected with high-strength stainless steel pins. An open design similar to our X-DOME cassette that aids in mud clearance, giving riders crisp shifting performance and longer component life.

  FEATURES
  • 520-percent gear range utilizing the industry standard XD hub driver.
  • Light and strong FULL PIN technology similar to X-DOME bringing true 1x gear range to more riders and builds.
  • Lunar and black colorway makes the XG-1275 cassette right at home on any build.



• Chain: SRAM GX Eagle, 12-Speed More

  Chain


  SRAM GX Eagle, 12-SpeedThe GX Eagle chain is designed with SRAM´s Eagle geometry, the GX Eagle chain features solid pin construction, Eagle PowerLock and smooth, efficient shifting that you can count on every time out.

  FEATURES
  • All-new Eagle PowerLock chain connector with FLOW LINK technology provides better chain-guiding and increased longevity.
  • Unique features and design also provide significantly improved wear resistance on Eagle cassettes and rings.



• Bottom Bracket: SRAM DUB Wide BSA
• Pedals: Not Included
• Brake Levers: SRAM Code R More

  Brake Levers


  SRAM Code RFor superior braking power, SRAM built Code R with a DirectLink lever mated to an oversized four-piston caliper. Finger ergonomics adapt with a tool-free reach adjust - offering a perfect balance of all forces: reliable, practical and - naturally - powerful.


• Brake Calipers: SRAM Code R
• Rotors: SRAM Centerline 180mm
• Headset: Cane Creek 40-Series

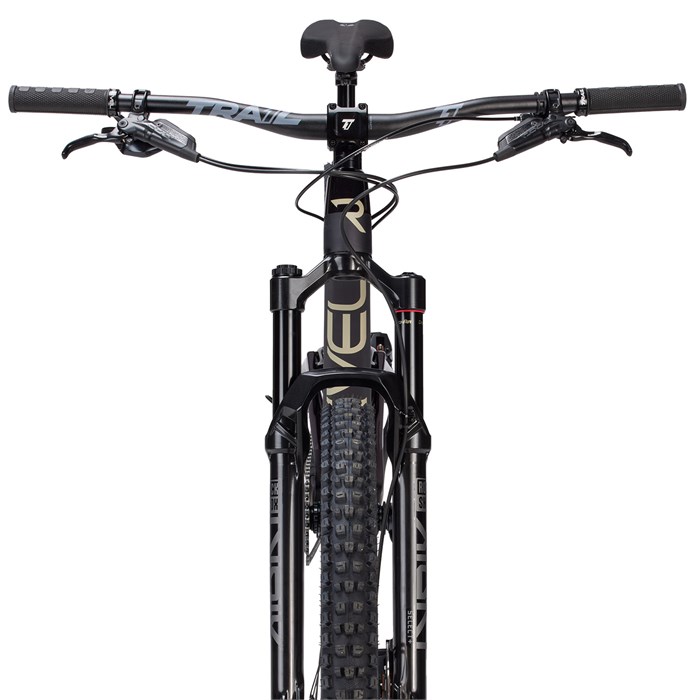

• Handlebar: Trail 1 The Crockett Alloy, 31.8, 800 x 25mm Rise
• Bar Tape/Grips: Trail 1 Farlow Gap Grip
• Stem: Trail 1 The Viking, 31.8x40mm
• Saddle: SDG Radar Lux-Alloy
• Seatpost: Crankbrothers Highline 7 Dropper More

  Seatpost


  Crankbrothers Highline 7 DropperThe Highline Dropper delivers infinite adjustment, smooth feel, and easy installation for any bike.
  • Premium Trelleborg® sealing
  • Exclusive Igus® LL-glide bearings and keys
  • Jagwire® cable and housing
  • Self-contained IFP hydraulic cartridge
  • Internal routing
  • Quick connect mechanism for ease of cable installation
  • Linear actuator for quick return speed
  • 2-bolt quick-connect head



• Hubs: Industry Nine 1/1 Hubs
• Rims: Crank Brothers Systhesis Alloy Rims
• Front Tire: Continental Kryptotal 2.4" | Trail More

  Front Tire


  Continental Kryptotal 2.4" | TrailThis all round tire balances stability of grip, traction for braking, and rolling resistance. Ideal for mixed terrain conditions for you to push your limits in trail, enduro or downhill gravity riding.


• Rear Tire: Continental Xynotal 2.4" | Trail More

  Rear Tire


  Continental Xynotal 2.4" | TrailWith low rolling resistance and contact edges for improved traction and braking, you can enjoy a fast gravity ride with the confidence of continuous grip when you need it most. Perfect for hardpack, rocky surfaces.


• Warranty: Limited Lifetime
