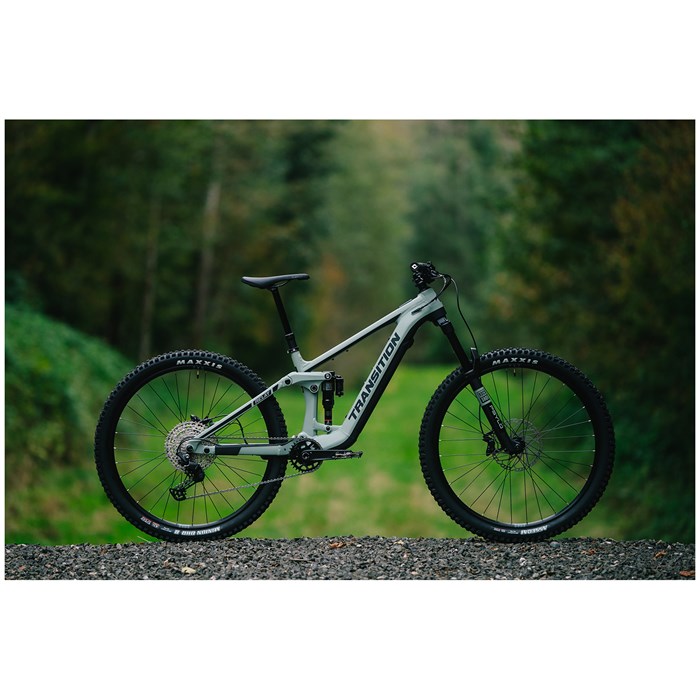

Transition Relay Alloy Deore E-Mountain Bike 2025

Product Details

Key Features

Alloy Frame

Travel– 160mm Front / 160mm Rear

Wheel Size– 29"

Fazua Ride 60 Drive Unit– 60 Nm of torque but more compact and lighter weight than full-power systems.

Fazua Ring Controller– The simple and ergonomic ring controller adjusts modes with a gentle nudge up or down. Pushing it up increases the power level, pushing it down decreases power level, pushing inward will activate walk mode. Holding the controller up for 2 seconds from any assistance mode will activate a boost mode, giving you peak system power output for roughly ten seconds.

Speed Balanced Geometry– SBG ensures the bike maintains low speed agility, front wheel traction, and proper rider weight balance while increasing confidence in steep terrain and at high speeds. With SBG, a slacker head tube angle is combined with an all new reduced offset fork standard, preventing the front wheel from being too far in front of the rider. This improves front to rear weight distribution on the bike, which is often out of balance on long and slack bikes. One of SBG´s greatest benefits is that it creates a confident steering feel that adapts to wheel speed. More stability when going fast, more agility on technical slow speed maneuvering as well as improved traction, control and confidence for any skill level of rider.

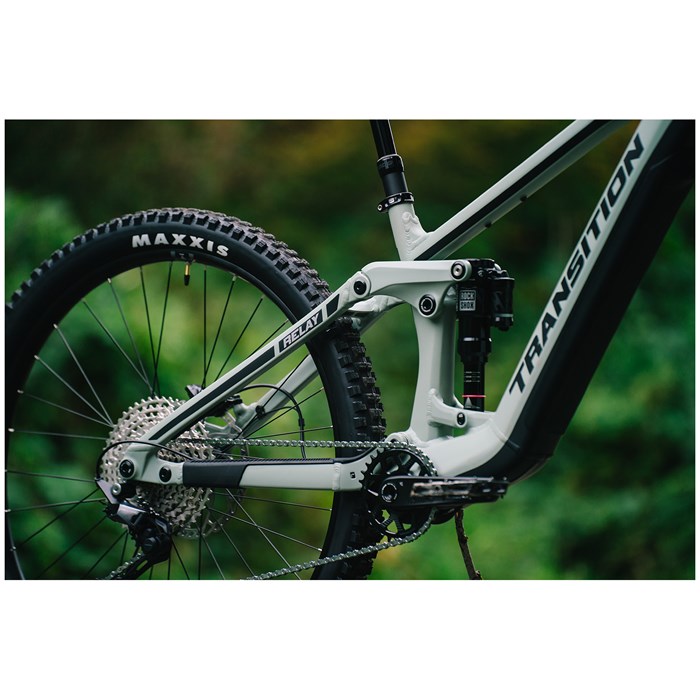

Coil and Air Shock Compatible– With 26% progression, the rear suspension is fully compatible with both air and coil shocks without worrying about harsh bottom out.

Long Dropper Insertion– With an uninterrupted seat tube, you are free to drop your post all the way to the collar, allowing for long droppers on every size.

Chainring Bashguard– Designed in-house, the forged spider bashguard keeps the chain, chainring, and frame safe from impacts.

Internal Cable Routing– Fully internal cable routing is a breeze with easy access through the battery door, while ports in the headtube keep it quick and easy to work on the headset.

UDH Compatible– SRAM´s Universal Derailleur Hanger is available at almost every bike shop, should something go wrong.

Gear Accessory Mount– An underside top-tube accessory mount allows you to carry a spare tube or other goodies safely on your frame in case you are looking to ditch your pack.

Specs

• Biking Type: Mountain More

  Biking Type



  MountainMountain bikes are built for tackling rough terrain with frames made of durable materials like aluminum or carbon fiber, ensuring stability and maneuverability. They feature suspension to absorb impacts from rocks, roots, and drops, providing a smoother ride.



• Used For: Enduro More

  Used For



  EnduroIf you’re looking for maximum performance while flying down heavier trails, an enduro bike is for you. These bikes combine ample suspension travel (typically 150mm+) with descent-focused frame geometry and components that allow for reasonably efficient pedaling.



• Suspension: Full Suspension More

  Suspension



  Full SuspensionEngineered to tackle the most challenging terrain with enhanced comfort and control. Unlike hardtail bikes, full suspension bikes feature both front and rear suspension systems that allow the wheels to move independently from the frame.



• Gearing: 1 x 12
• Frame Material: Aluminum Alloy More

  Frame Material



  Aluminum AlloyAluminum is the second lightest material per cubic inch, after carbon, but it is significantly more affordable. It offers versatility, strength, and durability that works well in all trail disciplines.



• Water Bottle Mounts: 1

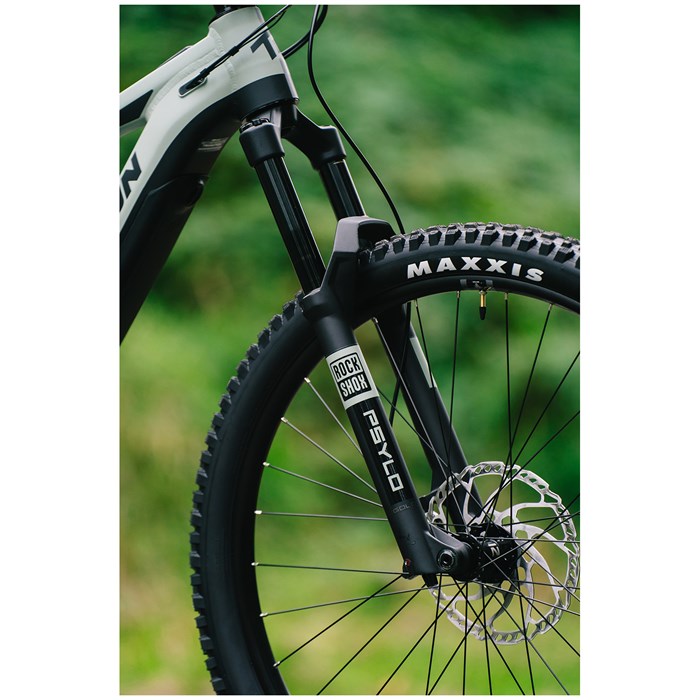

• Fork: RockShox Psylo Gold RC More

  Fork


  RockShox Psylo Gold RCYou don’t often strike gold twice! The RockShox Psylo Gold is bursting with value that invites riders to rethink what’s possible, whether they’re on lunch loops or all-mountain excursions, mountain bikes or E-MTBs. The all-new 35mm platform delivers premium performance with the new flow-focused Isolator RC three-position damper, tunable DebonAir air spring, and Maxima Plush Dynamic Suspension Lube to keeps things running smooth. Psylo combines value and performance to bring capability and reliability to each and every ride


• Stanchion Diameter (mm): 35
• Fork Travel (mm): 160

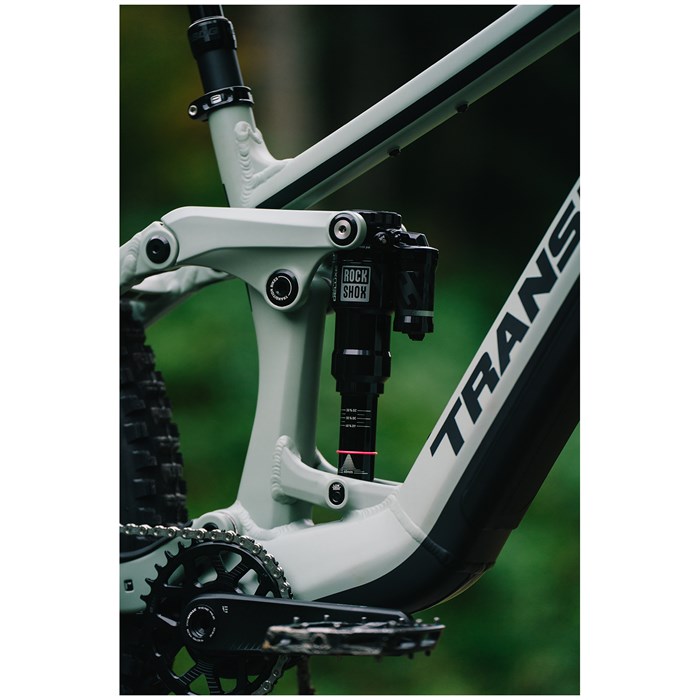

• Rear Shock: RockShox Super Deluxe
• Rear Travel (mm): 160
• Drive Unit: Fazua Ride 60 More

  Drive Unit


  Fazua Ride 60The lightweight 60Nm Fazua Ride60 drive unit weighs 4.3lb/1.96kg. The minimal drag and power to weight ratio provide the magic when not riding with power. As you begin to ride beyond the speed cutoff you´re not penalized when continuing to push beyond the assistance like that of traditional eMTBs. The 430Wh battery, 60Nm torque, 250Wh continuous power, 450Wh peak power, and overall bike weight work harmoniously together. This all equates to an experience that exceeds what you might expect from its numbers.


• Battery: Fazua Energy 430Wh More

  Battery


  Fazua Energy 430WhThe Fazua Energy 430Wh battery is powerful, compact and lightweight, delivering 430Wh of power and integrating seamlessly into the frame.


• Shifters: Shimano Deore SL-M6100 More

  Shifters


  Shimano Deore SL-M6100With quick lever access and a light, responsive lever action, Shimano´s Rapidfire Plus Deore shift lever delivers smooth control out on the trail.

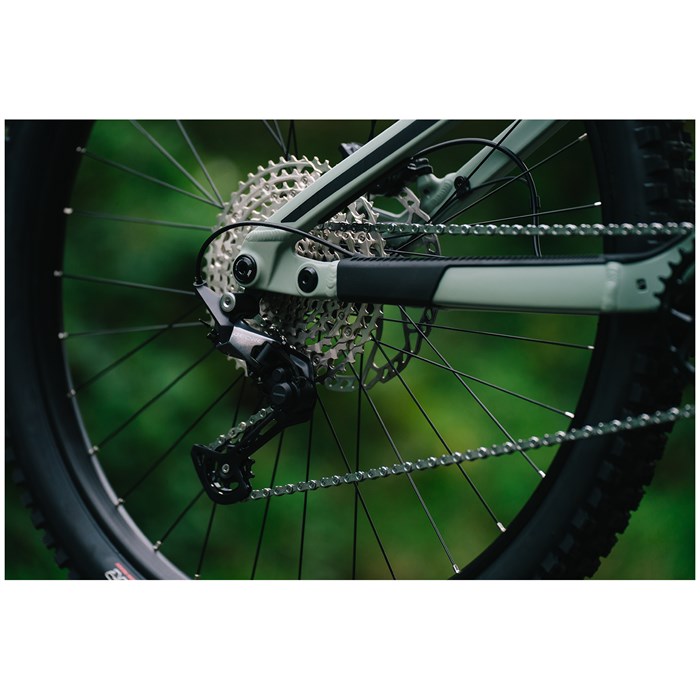

• Rear Derailleur: Shimano Deore M6100, 12-Speed More

  Rear Derailleur


  Shimano Deore M6100, 12-SpeedThe Shimano Deore M6100 rear derailleurs deliver advanced shifting performance with decreased tension in the low gear position. Larger 13T pulleys increase efficiency and chain management while compatibility with Shimano´s 12-speed cassettes boosts range.


• Crankset: Race Face Aeffect More

  Crankset


  Race Face AeffectThe new crank on the XC and trail riding scene is back with a new sleek two-tone color scheme and a 165 mm length. Aggressively attack any loamy surface with full confidence and without putting too big of a hurt on your fun funds.


• Cassette: Shimano Deore M6100, 10-51t More

  Cassette


  Shimano Deore M6100, 10-51tWith its Beam Spider construction, the Shimano Deore M6100 12-speed cassette shaves weight while increasing Shimano´s MTB gearing range another gear. Using Shimano´s new Micro Spline freehub body and HYPERGLIDE+ tooth profile, the 10-51T cassette delivers advanced shifting performance.


• Chain: Shimano Deore M6100, 12-Speed More

  Chain


  Shimano Deore M6100, 12-SpeedThe M6100 chain provides smooth shifting and enhanced chain retention thanks to an extended portion of the inner plate. The chain features Quick-Link assembly and is optimized for HYPERGLIDE+ cassettes and Dynamic Chain Engagement+ chainrings.


• Pedals: Not Included
• Brake Levers: Shimano Deore
• Brake Calipers: Shimano Deore M6100
• Rotors: Shimano RT66 | 203mm
• Headset: FSA No.55R
• Handlebar: RaceFace Chester 35 | 780mm
• Bar Tape/Grips: ODI Elite Flow Lock-On
• Stem: RaceFace Aeffect R | 40mm
• Saddle: SDG Bel Air 3
• Seatpost: SDG Tellis Dropper More

  Seatpost


  SDG Tellis DropperThe SDG Tellis Dropper is an absolute workhorse. A dropper post and remote combo with unsurpassed durability, reliability and simplicity. This post features a fully sealed cartridge system that´ll operate smoothly in the wettest, coldest, and muddiest conditions.


• Hubs: Novatec D791SB-B15/D902SB-B12
• Rims: WTB i30
• Spokes: Pillar Double Butted
• Front Tire: Maxxis Assegai 2.5" | 3C, EXO+ More

  Front Tire


  Maxxis Assegai 2.5" | 3C, EXO+Greg Minnaar’s signature tire – the Maxxis Assegai – provides tenacious, predictable grip across the entire profile no matter the lean angle. The Assegai can be used front and rear for a surefooted feel or as a front paired with a faster rolling rear tire.
  • EXO+: Durable 60 TPI casing, legendary EXO puncture protection in the sidewalls, and a small butyl insert around the bead to protect from pinch flats and help prevent rim damage.



• Rear Tire: Maxxis Minion DHR II 2.4" | 3C, EXO, TR More

  Rear Tire


  Maxxis Minion DHR II 2.4" | 3C, EXO, TRWith side knobs borrowed from the legendary Minion DHF, but widened to provide more support, the DHR II corners like no other. The center tread features ramped leading edges to improve acceleration and sipes to create a smooth transition when leaning the bike. Paddle-like knobs on the center tread dig in under hard braking and help keep the bike under control.
  • EXO: A cut and abrasion-resistant material added to the sidewalls.
  • Tubeless Ready (TR): Tubeless tires allow riders to run lower air pressures for improved traction, lower rolling resistance, and less chance of flatting.



• Warranty: Limited Lifetime (Frame and Bearings)
