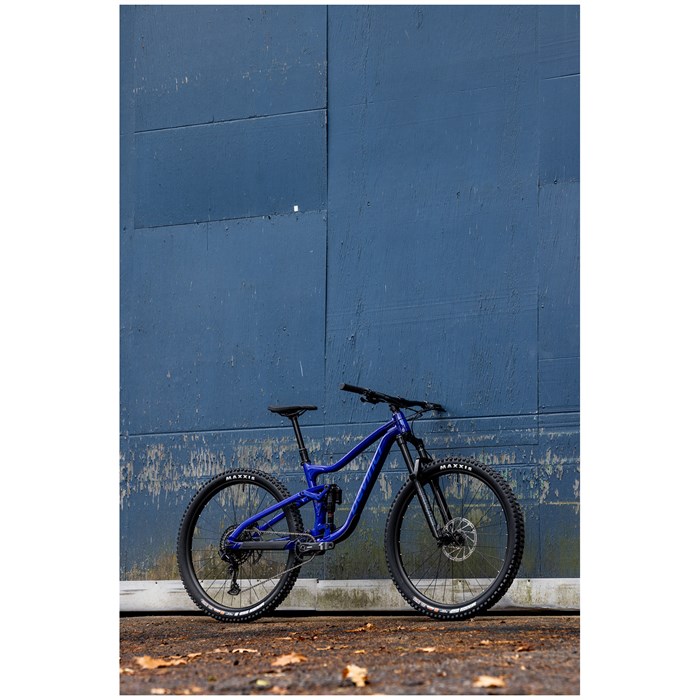

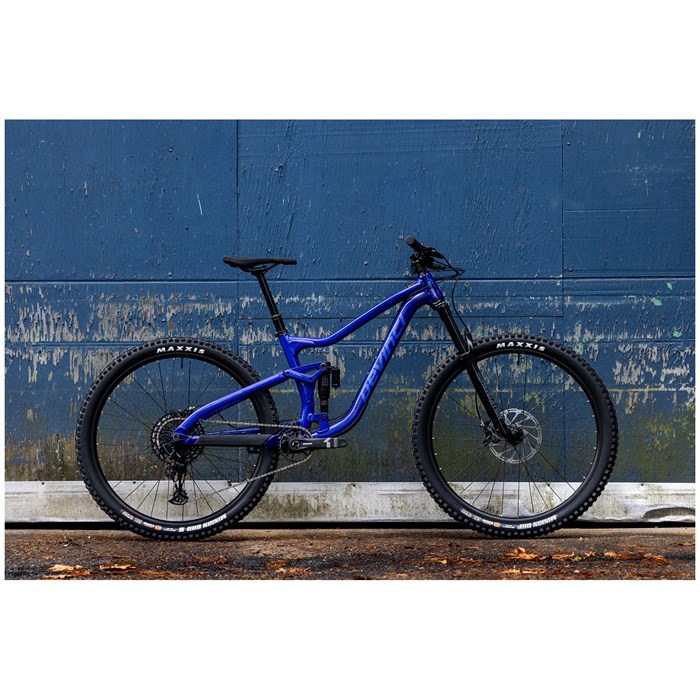

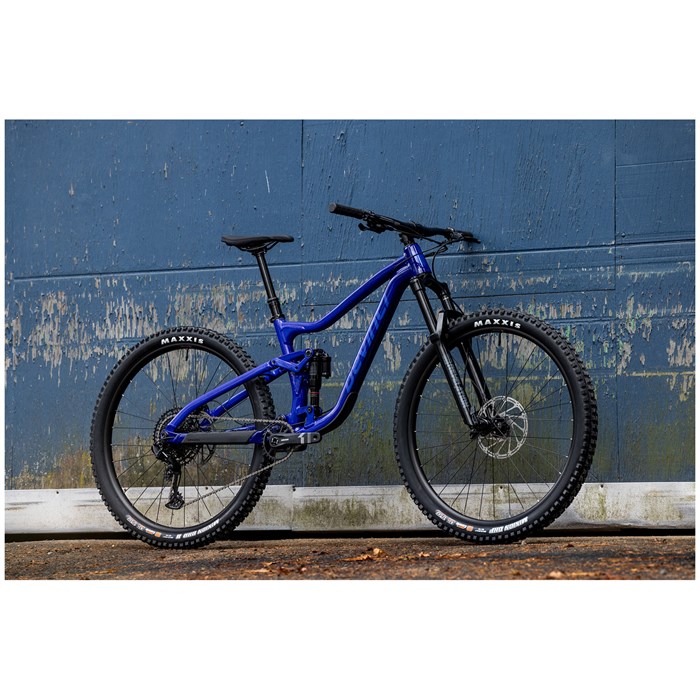

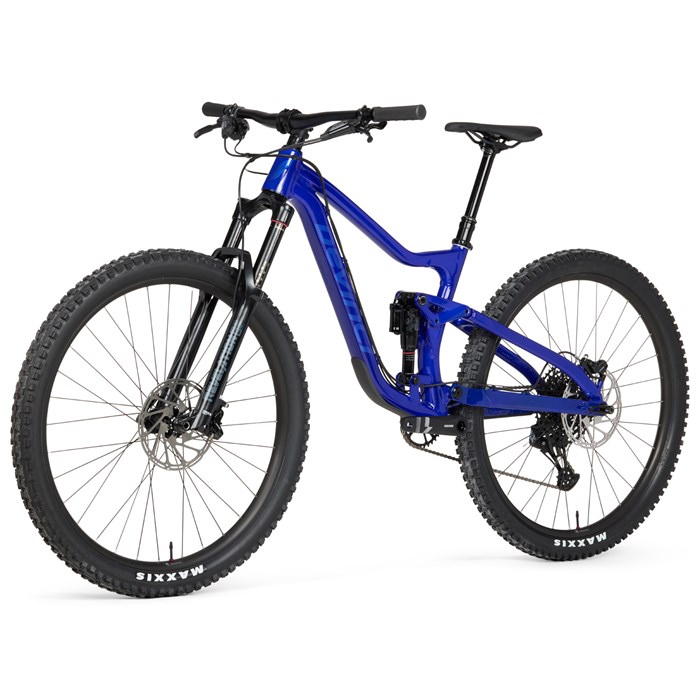

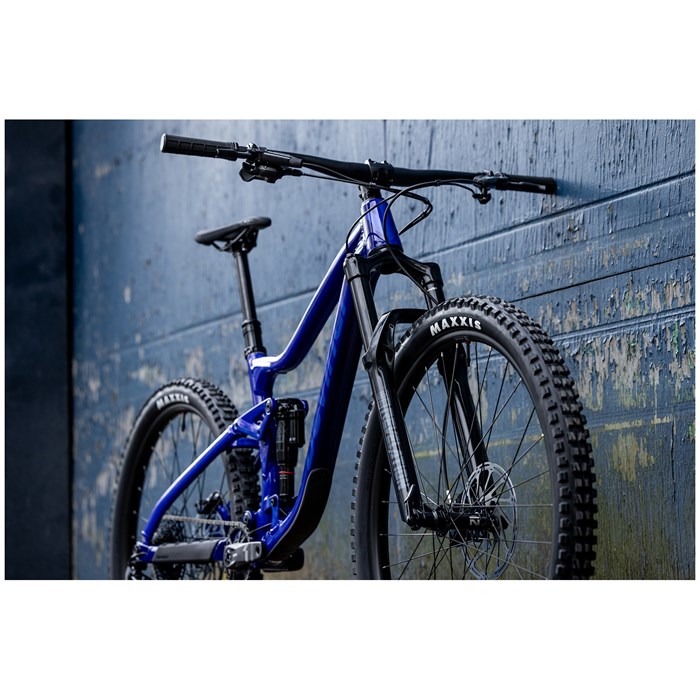

Devinci Troy A 29 NX 12s Complete Mountain Bike 2023

Product Details

Key Features

Made in Canada Aluminum Frame– Made from 6061-T6 aluminum tubesets for superior durability, incredible stiffness, and a knockout strength-to-weight ratio exclusive to Devinci bikes.

Travel– 150mm Front / 140mm Rear

Wheel Size– 29"

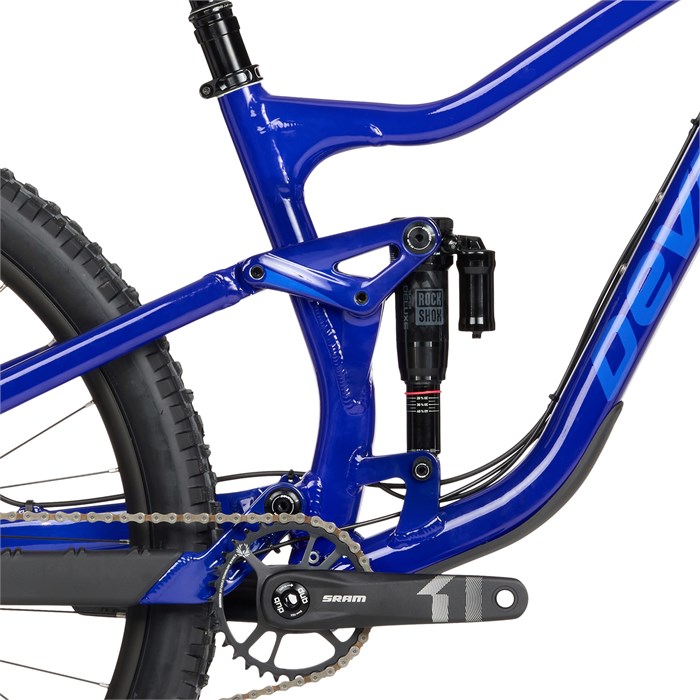

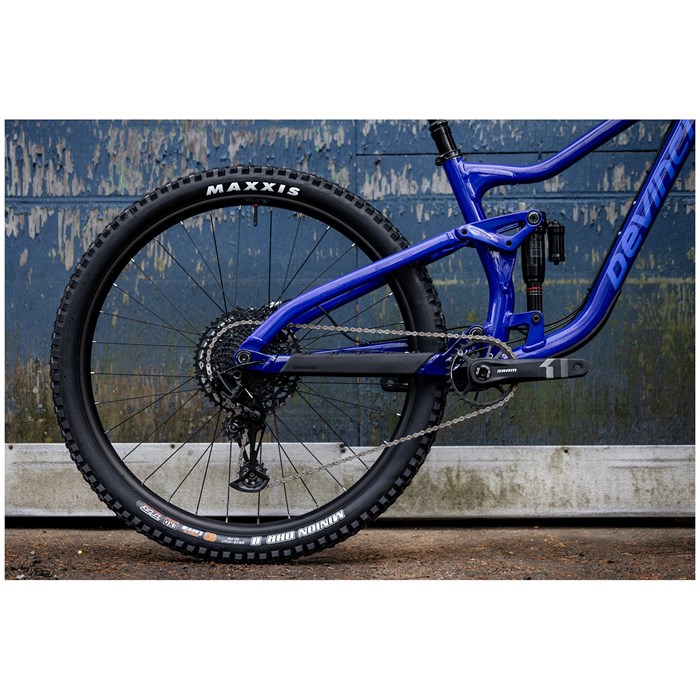

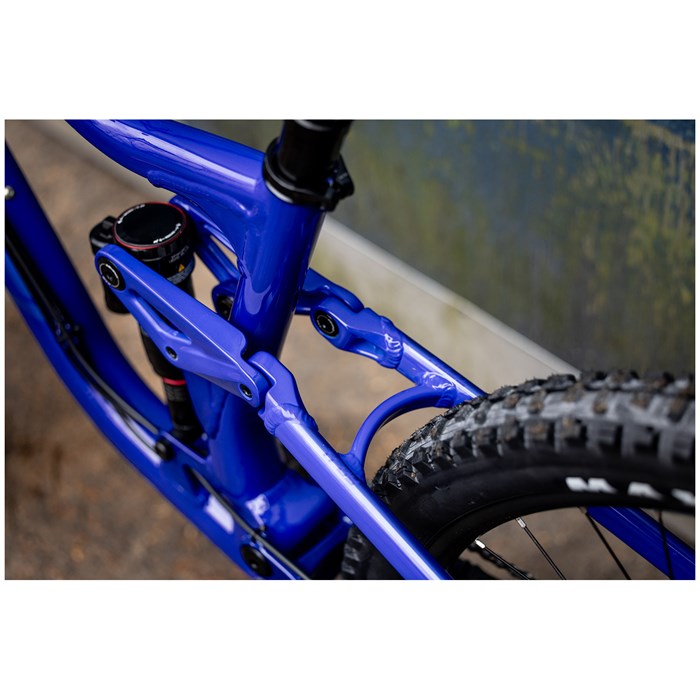

Split Pivot Suspension– Separates acceleration forces from braking forces for a buttery smooth ride with hyperactive small bump compliance, plus increased traction and podium-crushing pedal stroke efficiency.

Rider Optimized Chainstay Length– Adaptable chainstay lengths on large/XL bikes for a fully balanced feel on the trail, while rider size-appropriate front triangle enhances overall stability and handling.

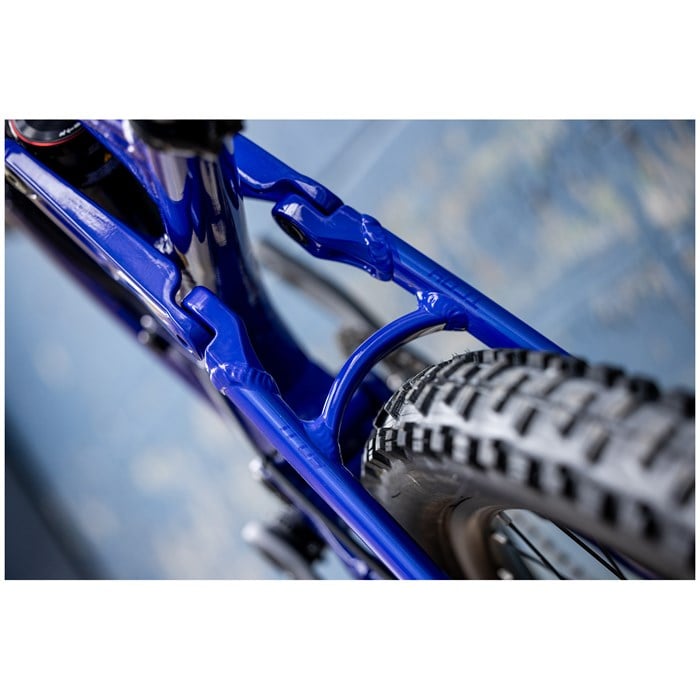

29 x 2.6" Maximum Tire Clearance– Super Boost rear spacing provides massive tire clearance at 29x2.6 for capable mud ejection plus the traction you want when trails turn slick.

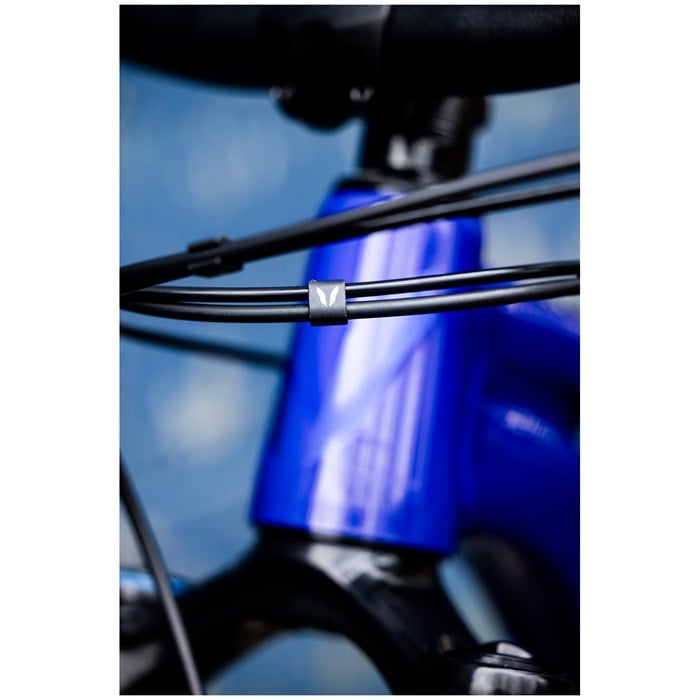

Cable Holder / Shock Washer Combo– User-friendly cable holder doubles as a lower shock washer for ultra-easy reassembly.

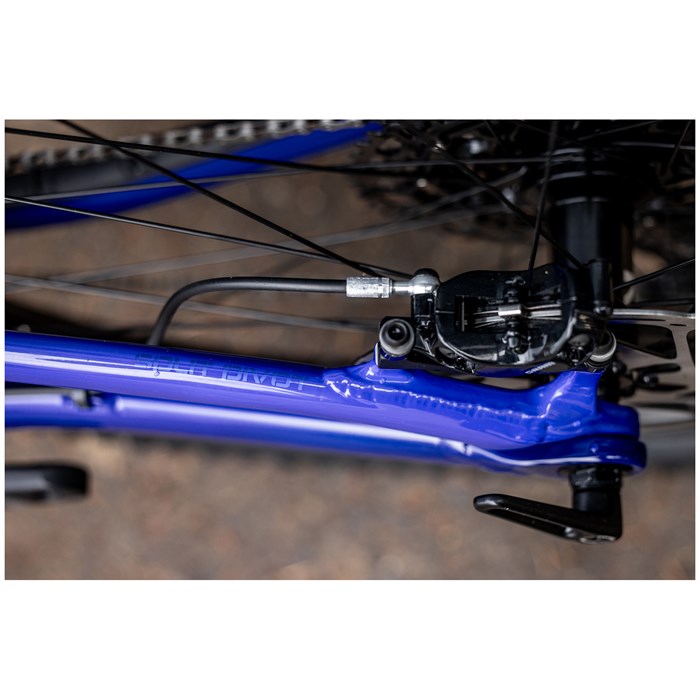

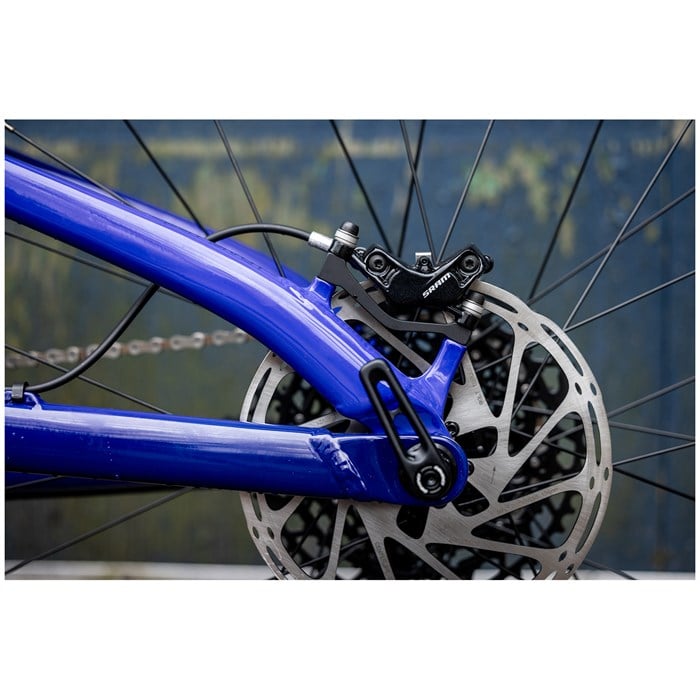

Rear Pivot Brake Cable Clip– Rear pivot brake cable clip complements streamlined architecture and shuns frame rubbing.

Double Row Linkage Bearings– Double-row, double-lip sealed linkage bearings for precision movement and superior longevity.

2-Bolts ISCG Mount– Get-gnarly chain guide fortified for on-trail use and abuse.

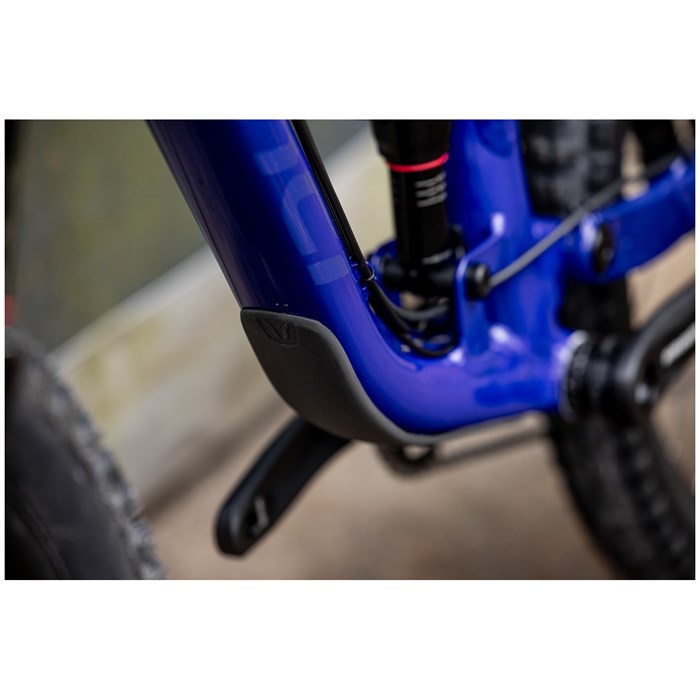

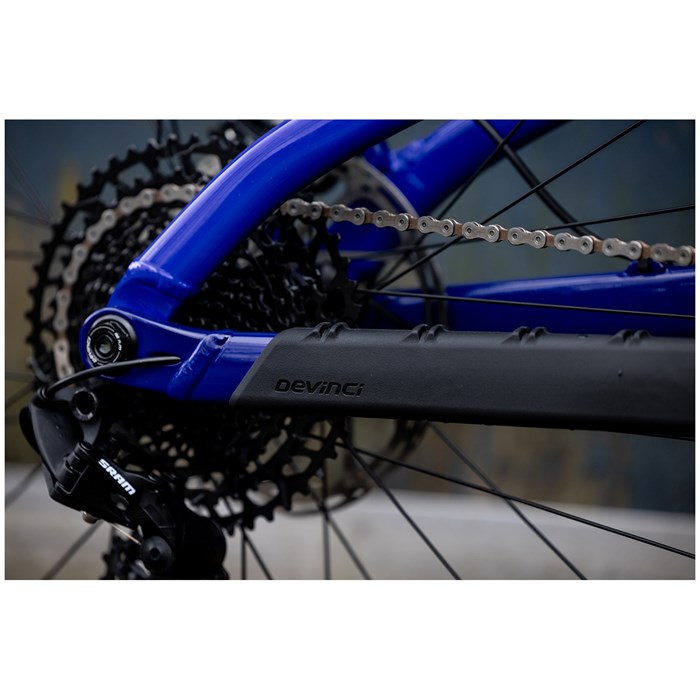

Molded Polyurethane Protector– High-density rock guard and chain stay protector enhance durability for the rugged ride ahead.

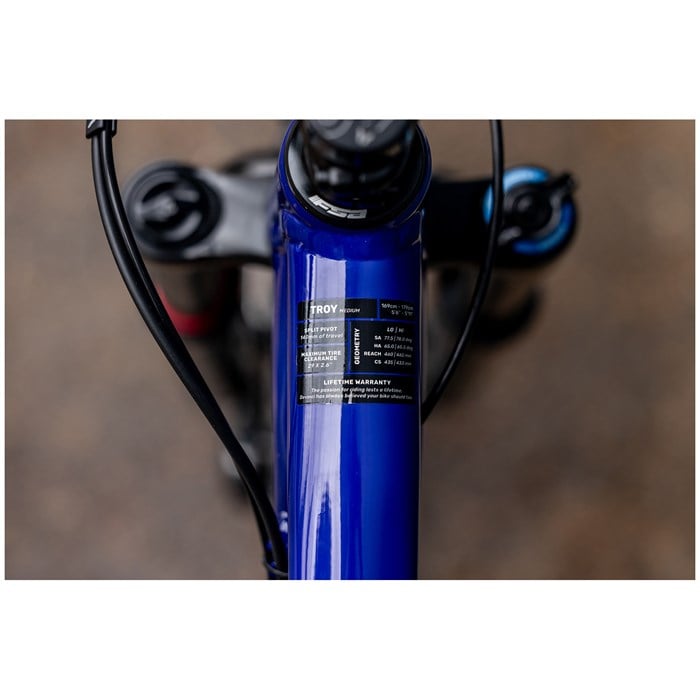

Updated Geometry– Modern trail bike geometry featuring a 15mm longer reach and 1 degree slacker head angle for confidently tackling technical sections, while steeper seat tube angle helps you motor up the climbs.

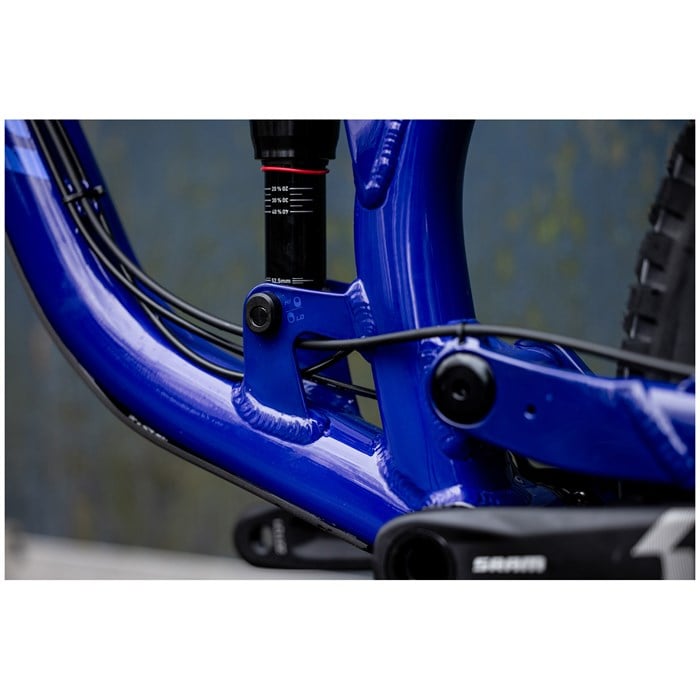

Geo Adjust Flip Chip– Switch between Hi/Lo mode to customize ride characteristics. The flip chip is conveniently located at the base of the shock mount with less moving parts, meaning it´s easier to use, especially if you want to conduct some on-trail experiments.

Specs

• Biking Type: Mountain More

  Biking Type



  MountainMountain bikes are built for tackling rough terrain with frames made of durable materials like aluminum or carbon fiber, ensuring stability and maneuverability. They feature suspension to absorb impacts from rocks, roots, and drops, providing a smoother ride.



• Used For: Trail, Enduro More

  Used For



  TrailTrail bikes are the quintessential “mountain bikes.” If you’re heading into the woods expecting to do it all on two wheels – climbing, technical sections, AND fun descents – you’re looking for a trail bike. EnduroIf you’re looking for maximum performance while flying down heavier trails, an enduro bike is for you. These bikes combine ample suspension travel (typically 150mm+) with descent-focused frame geometry and components that allow for reasonably efficient pedaling.



• Suspension: Full Suspension More

  Suspension



  Full SuspensionEngineered to tackle the most challenging terrain with enhanced comfort and control. Unlike hardtail bikes, full suspension bikes feature both front and rear suspension systems that allow the wheels to move independently from the frame.



• Frame Material: Aluminum Alloy More

  Frame Material



  Aluminum AlloyAluminum is the second lightest material per cubic inch, after carbon, but it is significantly more affordable. It offers versatility, strength, and durability that works well in all trail disciplines.



• Gearing: 1 x 12
• Water Bottle Mounts: 1

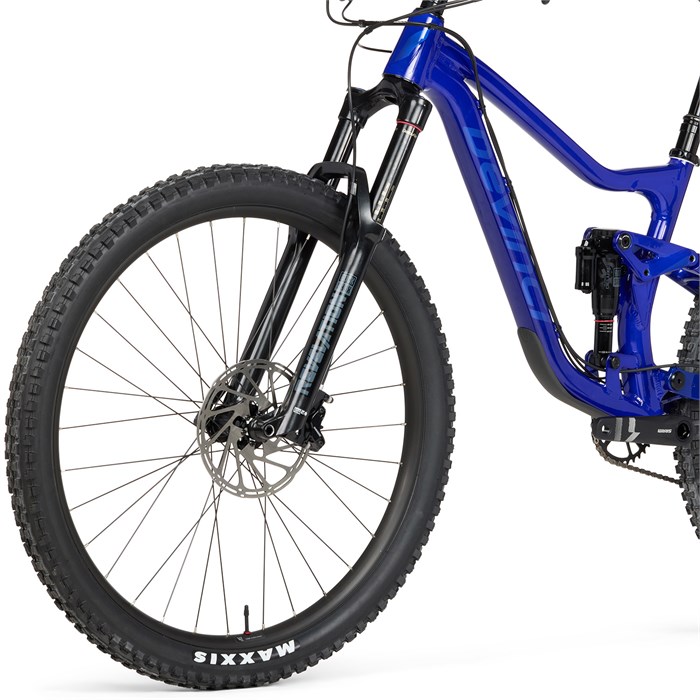

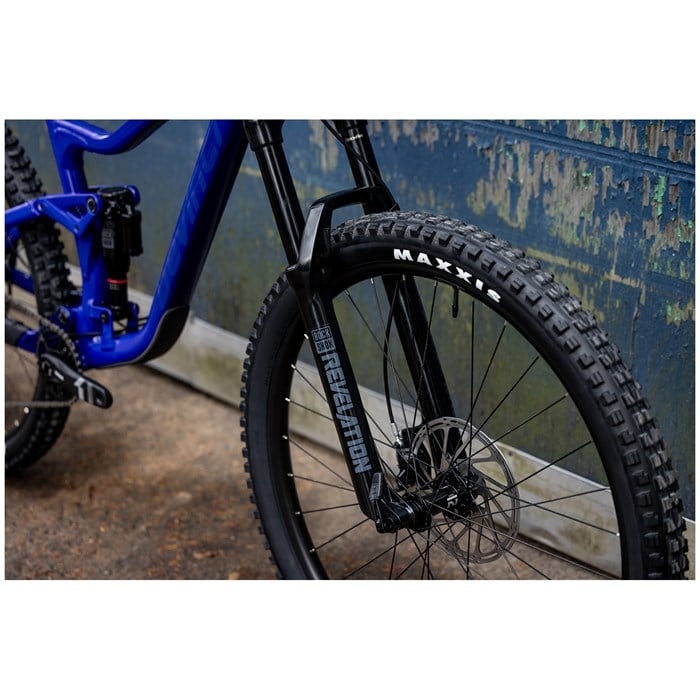

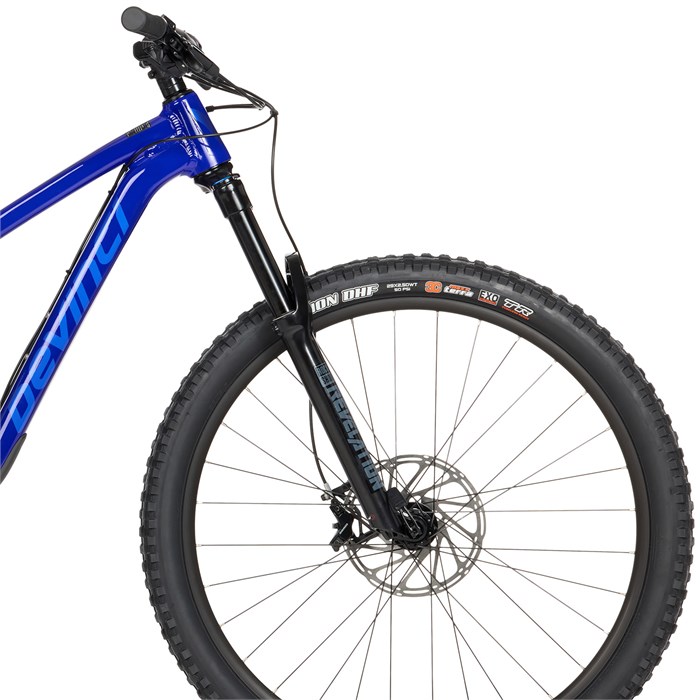

• Fork: RockShox Revelation RC More

  Fork


  RockShox Revelation RCRevelation has grown, and after representing the original long travel forks, it´s ready to tackle the most demanding trail rides. The chassis is directly derived from Pike, with 35mm Fast Black upper tubes for unmatched stiffness and to match the aggressive look of modern trail bikes.

  Fork Adjustments - Low Speed Compression Adjust


• Stanchion Diameter (mm): 35
• Fork Travel (mm): 150

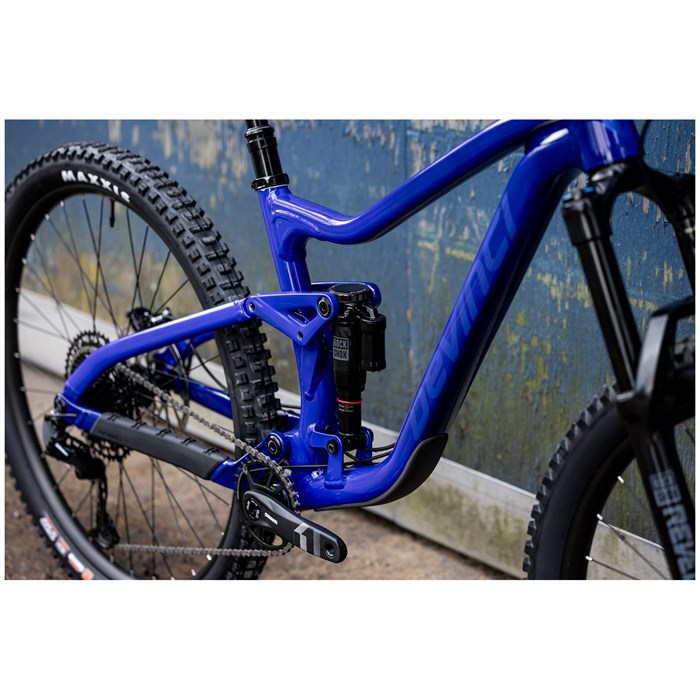

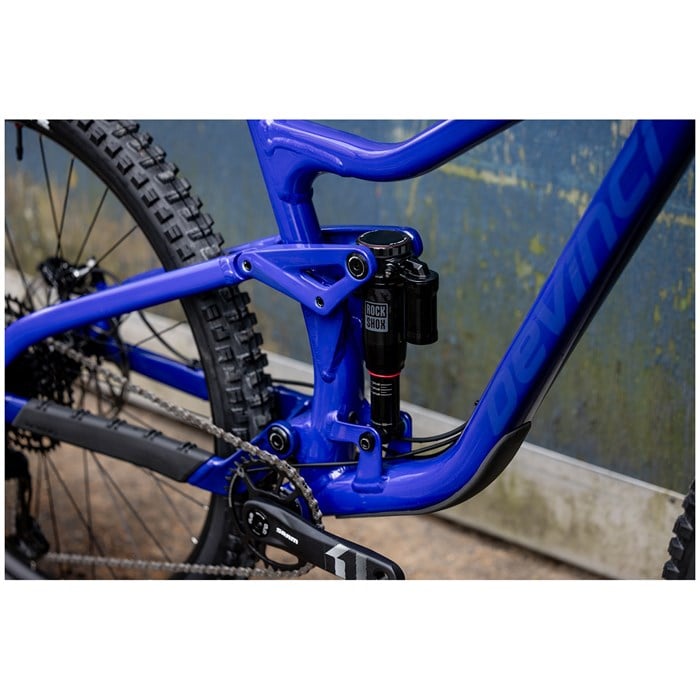

• Rear Shock: RockShox Super Deluxe Select More

  Rear Shock


  RockShox Super Deluxe SelectIt’s sweet, it’s simple, it shreds. Super Deluxe Select lives up to the Super Deluxe family’s winning legacy, loaded with the newest technology built for enduro epics, all in a pocketbook-pleasing package. Featuring new technologies like the DebonAir+ air spring with tunable positive and negative air chambers that allow you to personalize your ride, Hydraulic Bottom Out to cushion the blow on those heavy impact hits, and an updated, broader range of Rebound adjustments.

  Shock Adjustments - Air Spring Pressure, Rebound



• Rear Travel (mm): 140
• Shifters: SRAM NX Eagle More

  Shifters


  SRAM NX EagleThe NX Eagle™ trigger shifter means on-demand gear selection throughout the entire wide range Eagle™ cassette. The massive range means you never have to worry about having the right gear for the terrain.

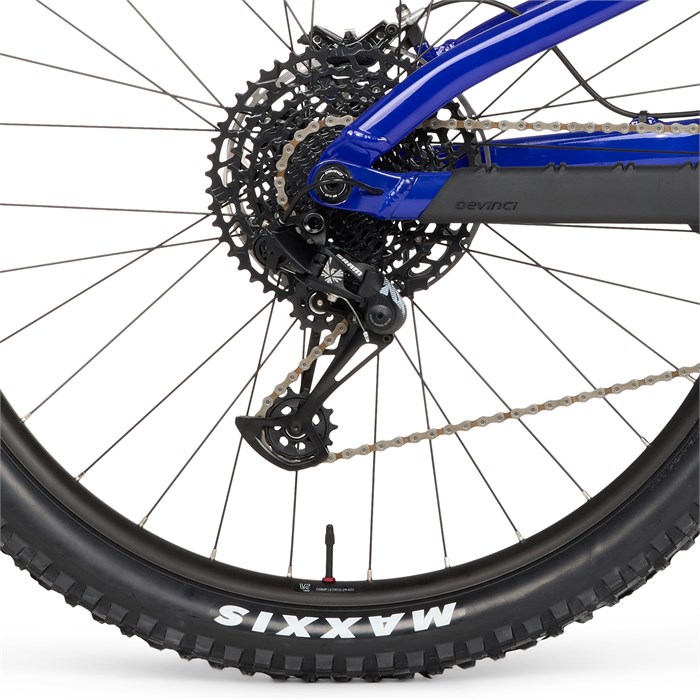

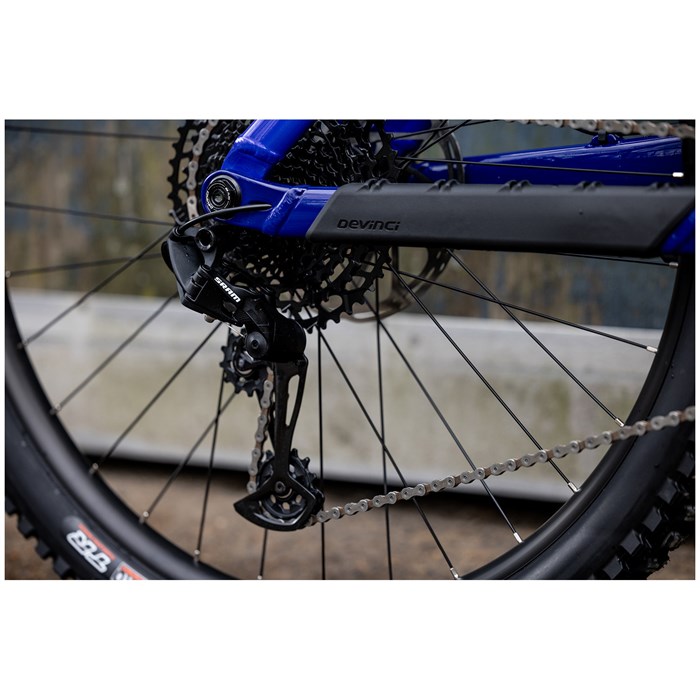

• Rear Derailleur: SRAM SX Eagle, 12-Speed More

  Rear Derailleur


  SRAM SX Eagle, 12-SpeedThis new SX Eagle derailleur is your entry point to the SRAM Eagle Ecosystem. Sharing many features with the rest of the Eagle Ecosystem like the proven SRAM 1x-specific X-HORIZON™ body design, it can accommodate both 11-50T and 10-50T cassettes. The SX Eagle is cross compatible with much of the Eagle Ecosystem, making it easy to personalize and upgrading your ride when you are ready.

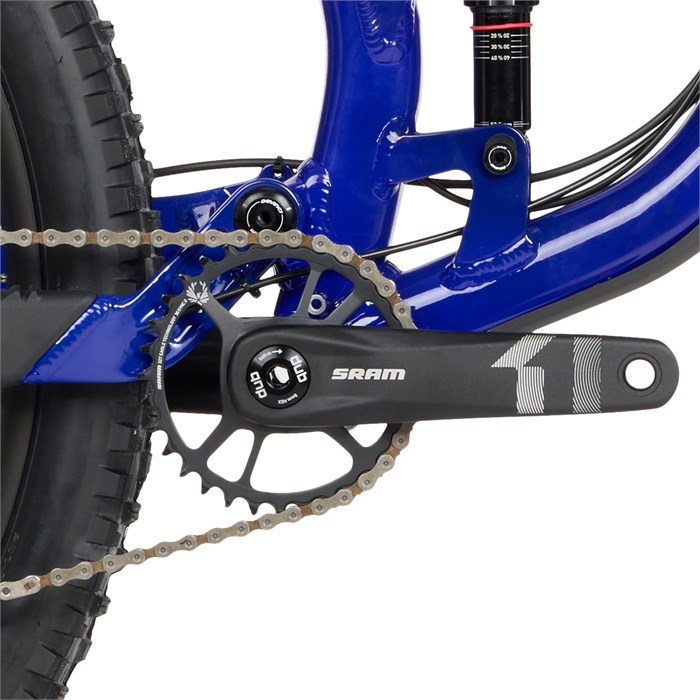

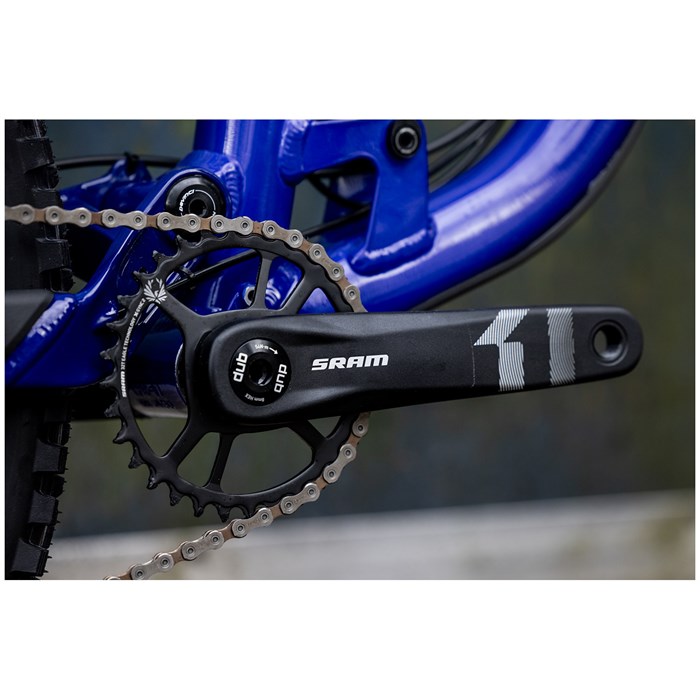

• Crankset: SRAM X1 1000 Eagle DUB, 32t More

  Crankset


  SRAM X1 1000 Eagle DUB, 32tQuality and durability combine in the SRAM X1 crankset to deliver consistent performance every time out. Featuring SRAM’s X-SYNC™ tooth profile, the X1 crankset is engineered for complete chain control. And with five available chainrings, you can personalize your gear range to match the way you ride.

  FEATURES
  • All new fully featured Eagle crankset. Now offering more Eagle™ options than ever before.
  • DUB technology option.
  • Steel Eagle™ direct mount ring — as seen on NX Eagle™.



• Cassette: SRAM NX Eagle, 11-50t More

  Cassette


  SRAM NX Eagle, 11-50tRide anywhere with the wide-range PG-1230, 11- to 50-tooth Eagle cassette. The NX cassette gives riders every bit of the climbing range that the Eagle™ ecosystem affords with a simple upgrade to splined-drive body wheels.


• Chain: SRAM SX Eagle, 12 Speed -OR- KMC X12, 12 Speed
• Bottom Bracket: SRAM DUB, BSA, 73mm
• Pedals: Not Included

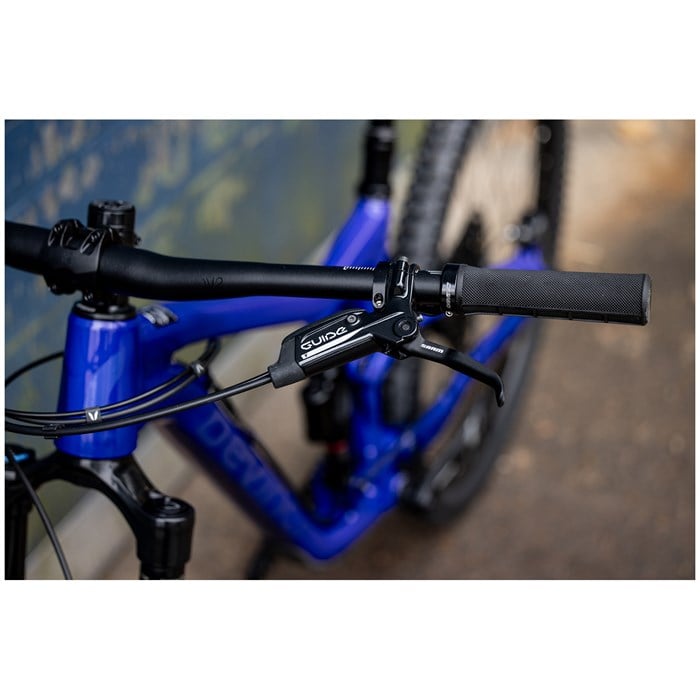

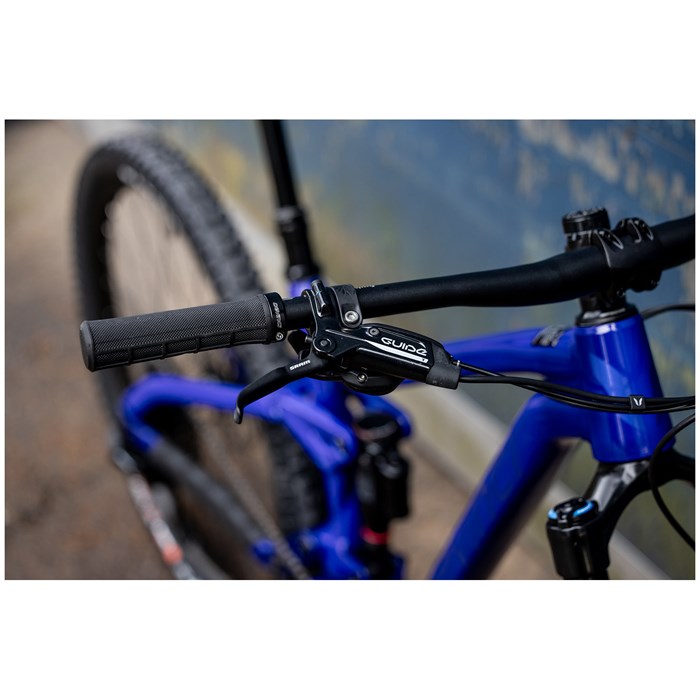

• Brake Levers: SRAM Guide T More

  Brake Levers


  SRAM Guide TGuide T brings the consistent performance that you have come to expect from SRAM´s lightweight four-piston caliper. Match this with MatchMaker™ for the cleanest looking bar set-up, plus the ease of use with Bleeding Edge drip-free bleed port and you have a smart budget minded brake that keeps you in control.


• Brake Calipers: SRAM Guide T
• Rotors: SRAM Centerline, 200mm

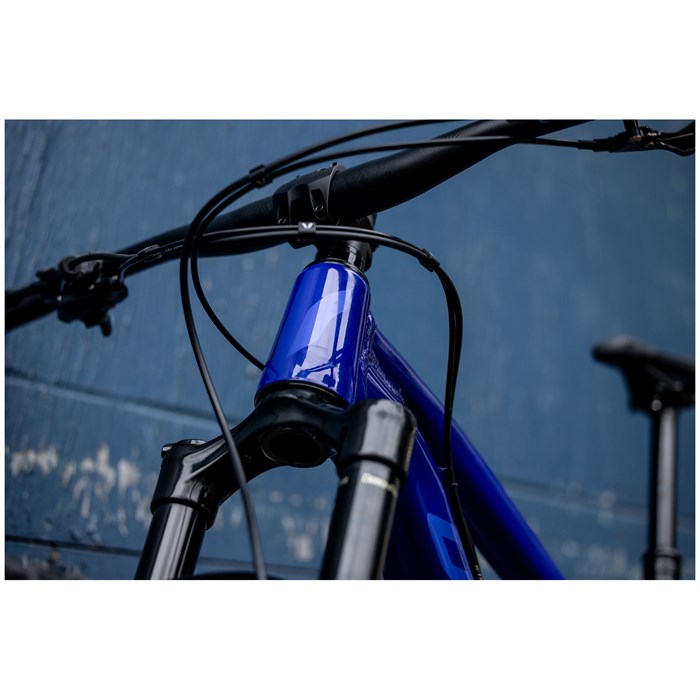

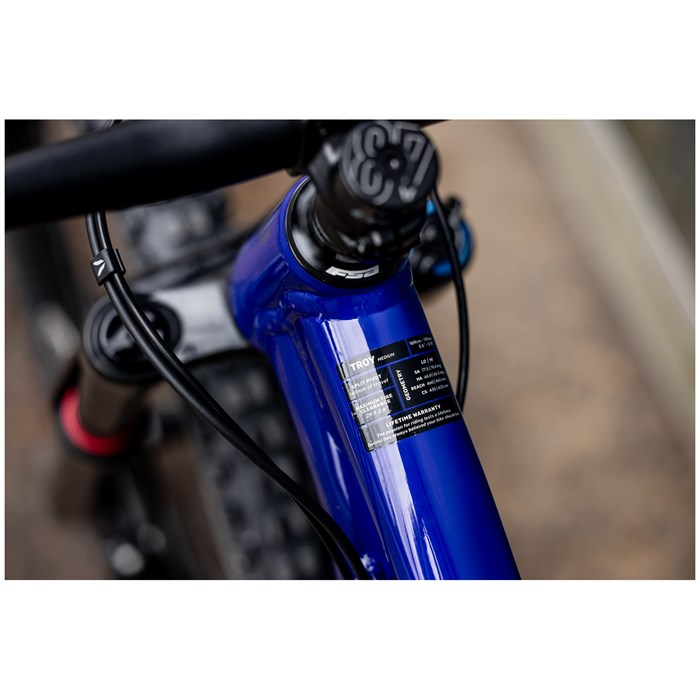

• Headset: FSA Orbit, 1.5, Zero Stack
• Handlebar: V2 Pro, 35mm x 15mm x 780mm
• Bar Tape/Grips: Devinci Performance w/ Lock-On
• Stem: V2 Pro, 35mm x 40mm, 0°
• Saddle: SDG Fly Mtn

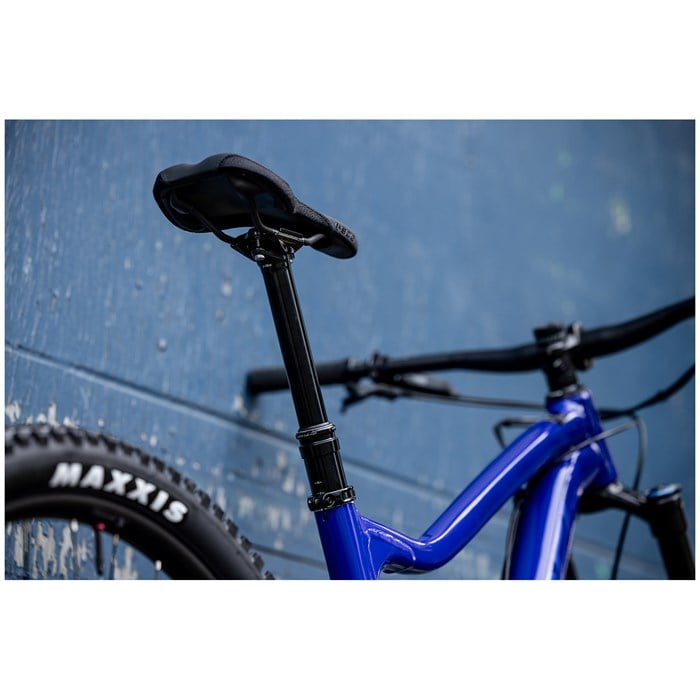

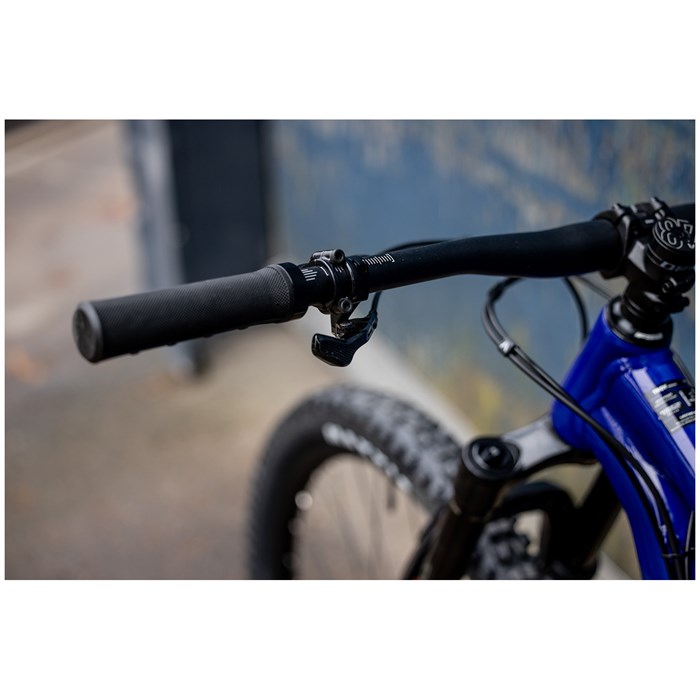

• Seatpost: TranzX | 34.9mm | 1x Lever
• Wheelset: V2 Comp
• Hubs: Novatec D791SB-B15 (Front), DH92SB-SH (Rear)
• Rims: V2 Comp 29, Tubeless Ready
• Spokes: Sapim Stainless 14G w/ Nylok

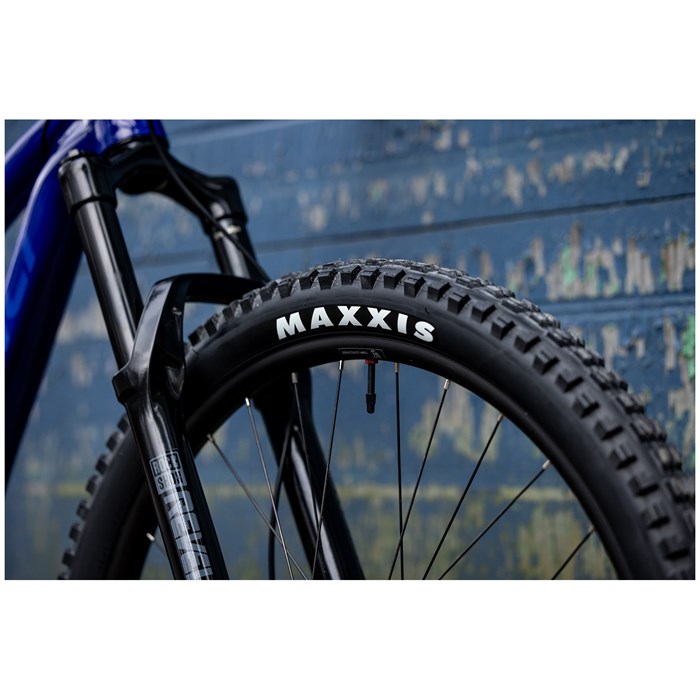

• Front Tire: Maxxis Minion DHF | 3C MaxxTerra, EXO More

  Front Tire


  Maxxis Minion DHF | 3C MaxxTerra, EXOWith a tread design that deftly balances rolling speed with braking and cornering traction, it’s no wonder why the Minion DHF is one of the most imitated tires in mountain biking.​
  • 3C MaxxTerra: A triple compound ideal for trail riding in all conditions - offers more traction than 3C MaxxSpeed, yet provides better treadwear and less rolling resistance than 3C MaxxGrip.
  • EXO: A cut and abrasion-resistant material added to the sidewalls.



• Rear Tire: Maxxis Minion DHR II 2.4" | 3C, EXO, TR More

  Rear Tire


  Maxxis Minion DHR II 2.4" | 3C, EXO, TRWith side knobs borrowed from the legendary Minion DHF, but widened to provide more support, the DHR II corners like no other. The center tread features ramped leading edges to improve acceleration and sipes to create a smooth transition when leaning the bike. Paddle-like knobs on the center tread dig in under hard braking and help keep the bike under control.
  • EXO: A cut and abrasion-resistant material added to the sidewalls.
  • Tubeless Ready (TR): Tubeless tires allow riders to run lower air pressures for improved traction, lower rolling resistance, and less chance of flatting.



• Warranty: Limited Lifetime (Frame)
