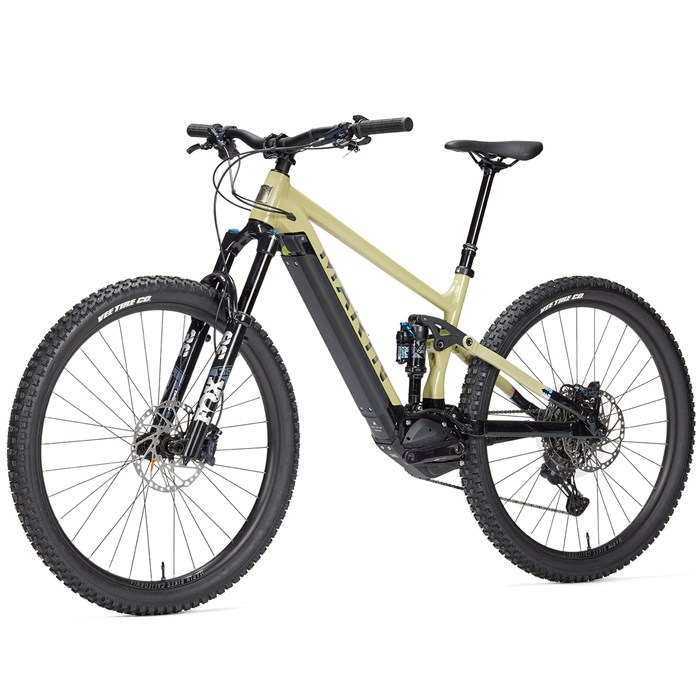

Marin Rift Zone E2 E-Mountain Bike 2023

Product Details

Frame/Shock

140mm Multitrac Suspension– The Rift Zone E features the same great, proven MultiTrac suspension technology, but optimized for the Shimano STEPS system. With this combination there is no need for platform or lockout levers, just get on and blast up the hills.

Series 4 Aluminum Frame– Rift Zone E models are built upon Series 4 aluminum frames, with detailed forgings, highly manipulated tubes, and full internal cable routing, giving the rider the highest-end alloy frame that Marin offers, compatible with modern coil or air shocks.

Fox Float X Performance Elite Rear Shock– From aggressive trail to enduro, the advanced damping, fade free performance and class-leading durability of Float X makes it the versatile and lightweight choice for All-Mountain riders who value their descents.

Shock Adjustments– Air Spring Pressure | Low Speed Compression Damping (11 Clicks) | 2-Position Firm/Open Lever | Rebound Damping (9 Clicks)

Drive Unit / Battery

Shimano 630Wh Integrated Battery– Designed specifically for SHIMANO´s STEPS system, the BT-E8036 battery integrates smoothly into the down tube and features 630 Wh capacity. Delivering a sleek design, the battery also charges quickly and retains its max capacity longer throughout its lifespan. Fast becoming an industry standard, this battery is easy to find and service.

Shimano EP801– With 85Nm of available torque, the EP8 delivers smooth, direct power to ensure you´re always in complete control while experiencing a natural ride feeling. With three customizable assist modes (and a walk mode), you can dial in exactly the ride you´re looking for, depending on terrain and route. This latest version of Shimano´s world-beating drive unit is smaller, lighter, and more responsive than ever before.

Fork

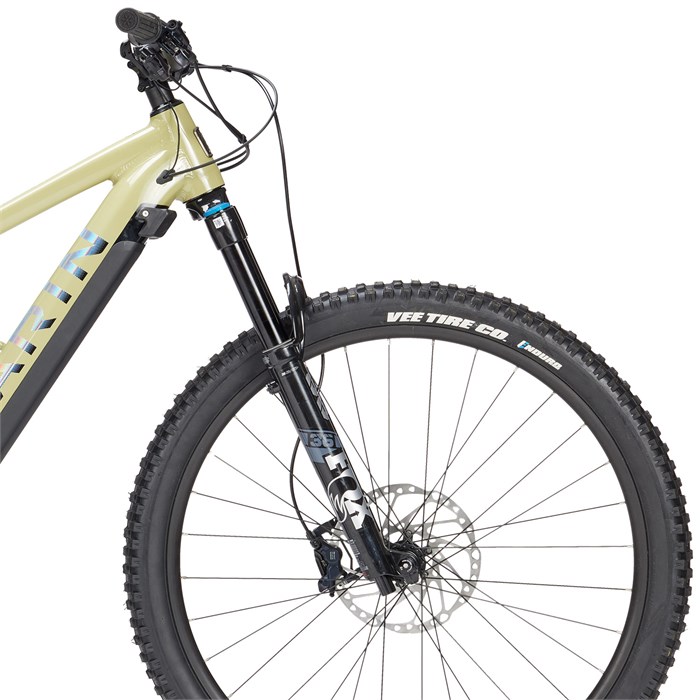

Fox 36 Performance Elite– The all-mountain fork choice for a decade, this latest 36 features lower leg bleed valves, optimized bypass channeling, a floating axle, and the amazing GRIP2 damper. For small bump sensitivity, mid-stroke support, and tunable bottom-out progression, this fork cannot be beat.

Fork Adjustments– Air Spring Pressure | High Speed Compression Damping (8 Clicks) | Low Speed Compression Damping (16 Clicks) | High Speed Rebound Damping (8 Clicks) | Low Speed Rebound Damping (16 Clicks)

Drivetrain

Shimano XT 11 Speed– The latest Shimano drivetrain tech features LinkGlide, a redesign of the ramps and pins that help a chain shift through a cassette. Made for the increased demands of ebikes, this system is incredibly durable and smooth, lasting longer than anything before it. Shift under load, shift while pedaling through roots, shift whenever you want.

Brakes

TRP DH-R EVO– Born from technology proven in World Cup DH and tuned for the demands of DH bikes and E-MTB’s, the four-piston DH-R EVO takes modulation and braking power to an entirely new level of control. New ergonomic lever-blade, newly formulated brake pad compounds, new high-performance hydraulic oil, new 5 mm brake hose-system, newly designed and CNC-machined adapters, new selection of thick 2.3mm rotors, newly designed oil flow inside the calipers, and a 10mm master cylinder piston lift the overall performance of the DH-R EVO to this new standard of TRP performance.

TRP Rotors | 203mm

Wheel Set

Marin Double Wall Aluminum Rims Laced to Shimano Hubs– With sealed bearings, 29mm inner width, and 32 spokes, these aluminum rims are light and strong--perfect for the do-it-all frame they´re attached to.

Vee Tire Co. Attack HPL Tires– The HPL represents the cutting-edge of fast high-speed ability, unparalleled precision and damping qualities that pros and weekend warriors all appreciate. Traction defying Top 40 compound and tried and trusted puncture protection ensures the new HPL is the tire to rely on in all conditions.

Additional Features

eBikes can only be shipped via ground. Delivery to AK and HI is unavailable at this time.

Price and Spec Subject to Change

Specs

• Biking Type: Mountain More

  Biking Type



  MountainMountain bikes are built for tackling rough terrain with frames made of durable materials like aluminum or carbon fiber, ensuring stability and maneuverability. They feature suspension to absorb impacts from rocks, roots, and drops, providing a smoother ride.



• Used For: Trail More

  Used For



  TrailTrail bikes are the quintessential “mountain bikes.” If you’re heading into the woods expecting to do it all on two wheels – climbing, technical sections, AND fun descents – you’re looking for a trail bike.



• Suspension: Full Suspension More

  Suspension



  Full SuspensionEngineered to tackle the most challenging terrain with enhanced comfort and control. Unlike hardtail bikes, full suspension bikes feature both front and rear suspension systems that allow the wheels to move independently from the frame.



• Gearing: 1 x 11
• Frame Material: Aluminum Alloy More

  Frame Material



  Aluminum AlloyAluminum is the second lightest material per cubic inch, after carbon, but it is significantly more affordable. It offers versatility, strength, and durability that works well in all trail disciplines.



• Water Bottle Mounts: 1
• Fork: Fox 36 Performance Elite More

  Fork


  Fox 36 Performance EliteThe Fox 36 is the undisputed all-mountain champion. Lighter, stronger, faster — the 36 continues to dominate the all-mountain category.

  Performance Elite forks retain the same adjustments, features, dampers, weight, and 7000 series aluminum upper tubes as Factory Series, but have black anodized stanchions instead of Genuine Kashima Coat.


• Stanchion Diameter (mm): 36
• Fork Travel (mm): 140
• Rear Shock: Fox Float X Performance Elite More

  Rear Shock


  Fox Float X Performance EliteFrom aggressive trail to enduro, the advanced damping, fade free performance and class-leading durability of Float X makes it the versatile and lightweight choice for All-Mountain riders earning their descents.

  Performance Elite shocks have all the same internals as Fox Factory models, just without the Kashima coating. Simply put, this is a highly tuneable and smooth shock made for aggressive trail riding.

  Shock Adjustments - Air Spring Pressure / Open/Firm Compression Lever / Low Speed Rebound / Low Speed Compression


• Rear Travel (mm): 140
• Drive Unit: Shimano EP801 More

  Drive Unit


  Shimano EP801With 85Nm of available torque, the latest incarnation of the EP8 platform
  delivers smooth, direct power to ensure you´re always in complete control while experiencing a natural ride feeling. With three customizable assist modes (and a walk mode), you can dial in exactly the ride you´re looking for, depending on terrain and route. This latest version of Shimano´s world-beating drive unit is smaller, lighter, and more responsive than ever before.


• Battery: Shimano 630Wh More

  Battery


  Shimano 630WhShimano´s 630Wh battery provides epic range with a sleek, rapid charging design. It´s easily removable, making battery swaps and cable access a breeze, and is designed to go through hundreds of cycles without degradation.


• Shifters: Shimano XT More

  Shifters


  Shimano XTShimano´s Rapidfire Plus Deore XT shift lever delivers light and responsive front shifting for improved control out on the trail.

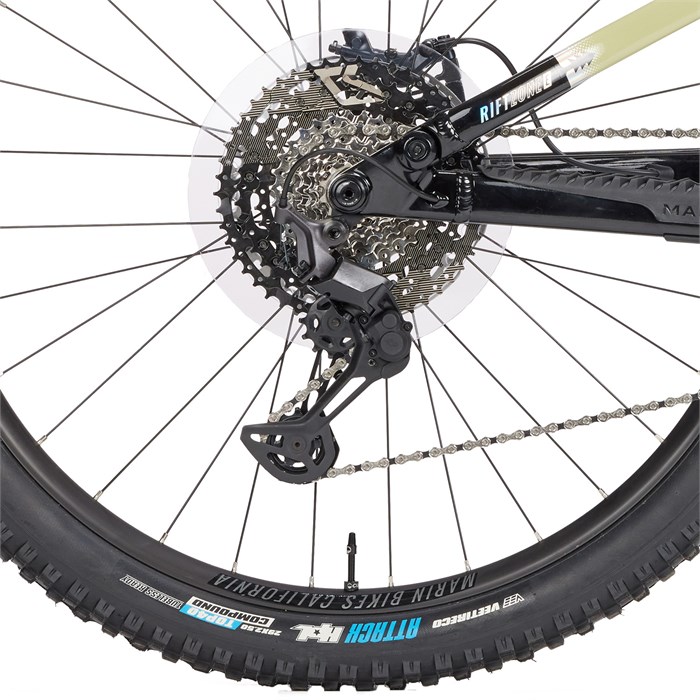

• Rear Derailleur: Shimano XT M8130, 11-Speed More

  Rear Derailleur


  Shimano XT M8130, 11-SpeedThe Shimano XT M8130 11-speed Rear Derailleur with SHADOW+ technology delights with its smooth and decisive shifting. Roomy chain clearance and stability over rough mountain terrains reduce chain slap and droppage.

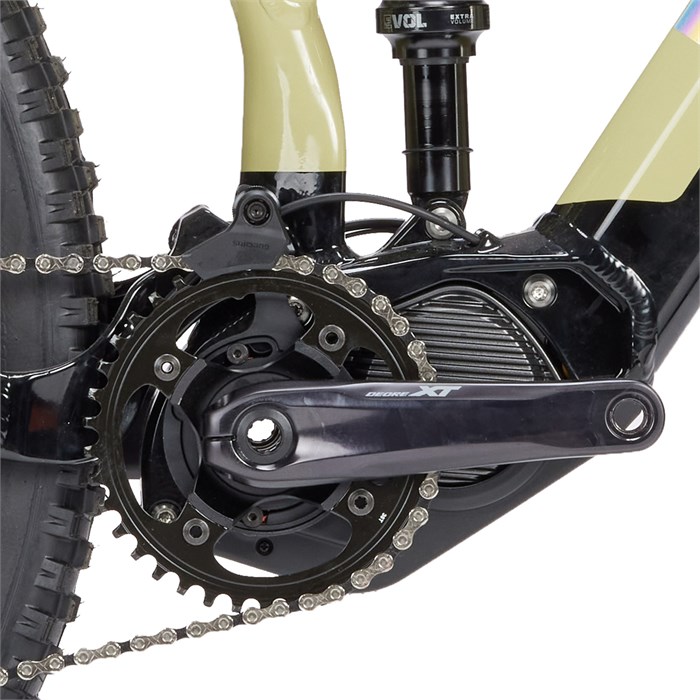

• Crankset: Shimano XT M8150, 38t More

  Crankset


  Shimano XT M8150, 38tDesigned for the rigors of E-MTB riding, the Shimano Deore XT M8150 crankset integrates cleanly and eliminates the need for spacers. Employing Shimano´s HollowTech technology, the M8150 crank delivers optimal power transfer while reducing weight.


• Cassette: Shimano XT LinkGlide, 11-50t
• Chain: KMC e11, 11-Speed More

  Chain


  KMC e11, 11-SpeedKMC was the first chain manufacturer to develop special chains for e-bikes with mid-mounted motors. Their analysis of the power transmission on e-bikes with a mid-motor showed that the frequent shifting operations under load require significantly higher safety reserves that cannot be realized with classic chains. Their e-bike chains offer extra strength, coatings, and allow for higher torque.



• Pedals: Marin MTB Plastic
• Brake Levers: TRP DH-R EVO More

  Brake Levers


  TRP DH-R EVOThe new DH-R EVO brings maximum power, unparalleled modulation and optimized heat management to heavy 29er DH bikes, long travel Enduro rigs and the new era of E-MTB charging. The G-Spec DH-R brake has been re-designed to the all-new DH-R EVO. A new caliper, new lever, new hose, new oil, new pads, new 223/2.3mm rotors and a new hydraulic leverage ratio, creates a new performance standard that fuels the TRP brand.


• Brake Calipers: TRP DH-R Evo
• Rotors: 203mm
• Headset: FSA No.57
• Handlebar: Marin Trail | 7000 Aluminum | 800mm | 35mm | 5º Up / 8º Backsweep | 20mm Rise
• Bar Tape/Grips: Marin Grizzly Lock-on
• Stem: Marin CNC Aluminum | 35mm / 35mm
• Saddle: Marin eMTB Saddle
• Seatpost: X-Fusion Manic Dropper | S: 125mm / M-L: 150mm / XL: 170mm More

  Seatpost


  X-Fusion Manic Dropper | S: 125mm / M-L: 150mm / XL: 170mmThe X-Fusion Manic Dropper elects for a simpler design. Inside you´ll find a closed cartridge that is both sealed and designed to be easily removable from the rest of the post. Simple construction aside, the action of this post feels super-dooper smooth, and far silkier than any dropper. Features internal cable routing.


• Hubs: Shimano 32H | Centerlock Disc | MicroSpline Freehub
• Rims: Marin Aluminum Double Wall | 29mm | 29"
• Spokes: 14g Black Stainless Steel
• Tires: Vee Tire Co. Attack HPL | Override E-Specific Casing | 29 x 2.5"
• Warranty: 5 Years
