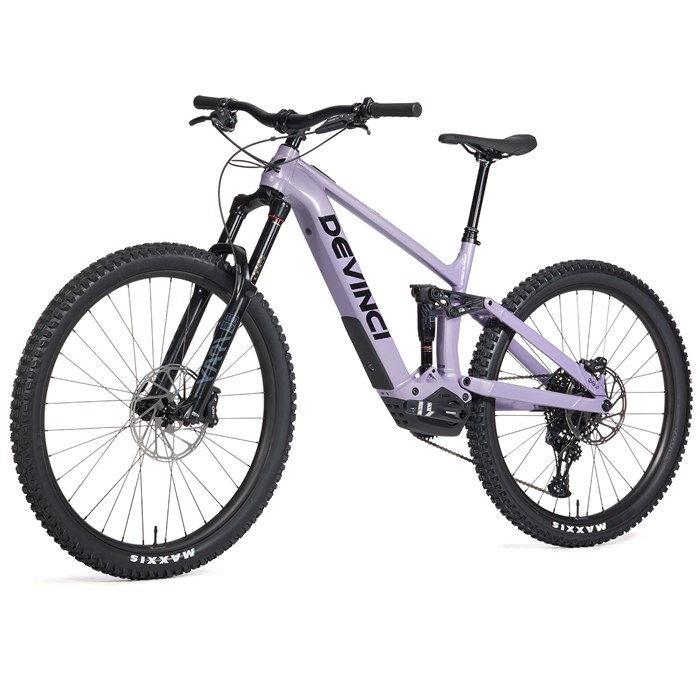

Devinci E-Troy Lite NX 12s E-Mountain Bike 2024

Product Details

Key Features

Aluminum Optimum G04 Frame

Travel– 160mm Front / 150mm Rear

Wheel Size– Mixed Wheel: 29" Front / 27.5" Rear

Bosch Performance Line SX Drive Unit– German engineering in a Canadian-made frame. Weighing at 4.4 lbs (2.0 kg), Bosch’s newest and lightest drive unit yet, the Performance Line SX delivers 55 Nm of torque and has a maximum power output of 600 watts. To achieve its light weight, the motor is built around a magnesium housing. The Performance Line SX utilizes Bosch’s smart system, making it compatible with their app eBike Flow and, therefore, fully tunable for the rider’s preferences.

400 Wh Battery– Minimal profile, seamlessly integrated, and compact – these are the defining features of the Bosch CompactTube 400 battery hiding in the E-Troy Lite. Weighing approximately 1995 grams, this energy powerhouse delivers an impressive 400 watt-hours. With the latest battery cell technology, it stands out as the Bosch eBike battery with the highest energy density.

Upto 67km Range– A full charge will get you approximately 2 hours of riding, 1000 meters of climbing, and an average range of 40 km. Using mainly the ECO mode, the battery will deliver up to 67 km of range. Using primarily the TURBO mode, the system will provide a range of approximately 28 kilometers. The average speed, the assist mode, the weather, the wind, the rider´s weight, and the frequency of stops are all factors that play a role in the energy consumption of the battery.

Bosch System Controller– The System Controller is the control unit for eBikes with Bosch´s smart system. It is seamlessly integrated into the top tube.

Bosch Ebike Flow App– Bosch offers connectivity and customized riding experience through the eBike Flow App. Itinerary planning, personalize your riding modes, track your activity, synchronize your Strava, update your software…All at the tip of your fingers.

Riding Modes– ECO: Low level support with maximum efficiency for the greatest range. / TOUR+: Smooth incremental support for energy-saving riding and a natural riding experience for longer rides. / eMTB: Providing targeted support for eMTB riding and delivering power exactly when it´s needed for an optimal ride experience. / TURBO: Maximum power support even at high cadences on steep climbs.

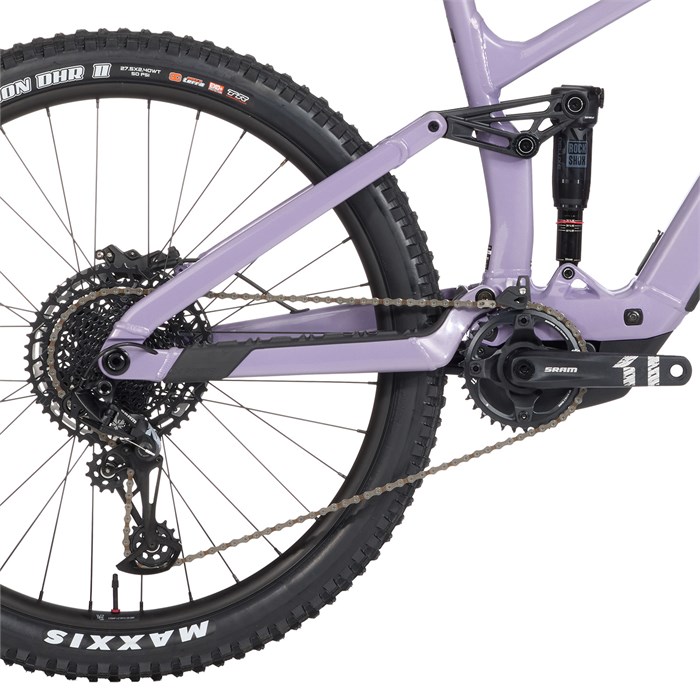

E-MTB Optimized Split Pivot– Separates acceleration forces from braking forces for a buttery smooth ride complemented by hyperactive small-bump compliance. Additionally, optimized kinematics keeps the e-bike suspension active, even when accelerating, for added torque and improved overall traction.

Dedicated Mixed-Wheel Size Design– Get all the snappy handling of 27.5" with the added traction, rollover and momentum of a 29" wheel up front.

Specs

• Biking Type: Mountain More

  Biking Type



  MountainMountain bikes are built for tackling rough terrain with frames made of durable materials like aluminum or carbon fiber, ensuring stability and maneuverability. They feature suspension to absorb impacts from rocks, roots, and drops, providing a smoother ride.



• Used For: Trail More

  Used For



  TrailTrail bikes are the quintessential “mountain bikes.” If you’re heading into the woods expecting to do it all on two wheels – climbing, technical sections, AND fun descents – you’re looking for a trail bike.



• Suspension: Full Suspension More

  Suspension



  Full SuspensionEngineered to tackle the most challenging terrain with enhanced comfort and control. Unlike hardtail bikes, full suspension bikes feature both front and rear suspension systems that allow the wheels to move independently from the frame.



• Gearing: 1 x 12
• Frame Material: Aluminum Alloy More

  Frame Material



  Aluminum AlloyAluminum is the second lightest material per cubic inch, after carbon, but it is significantly more affordable. It offers versatility, strength, and durability that works well in all trail disciplines.



• Water Bottle Mounts: 1

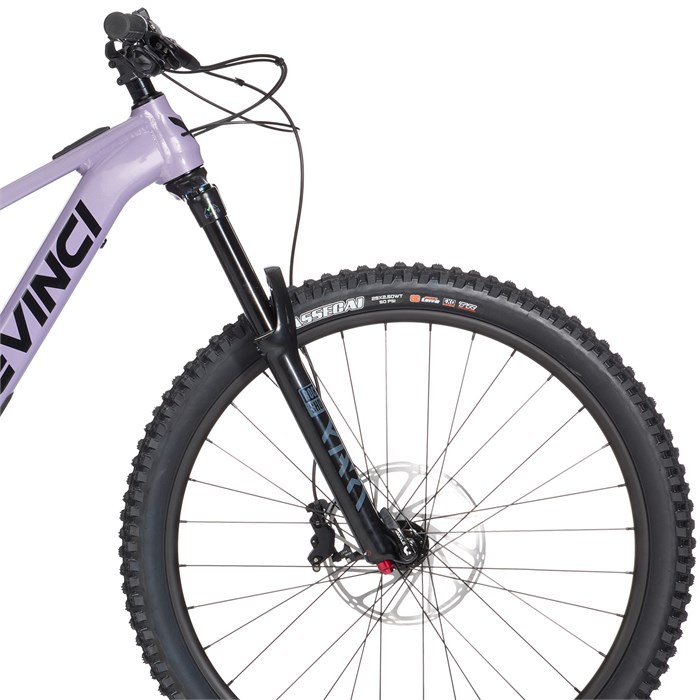

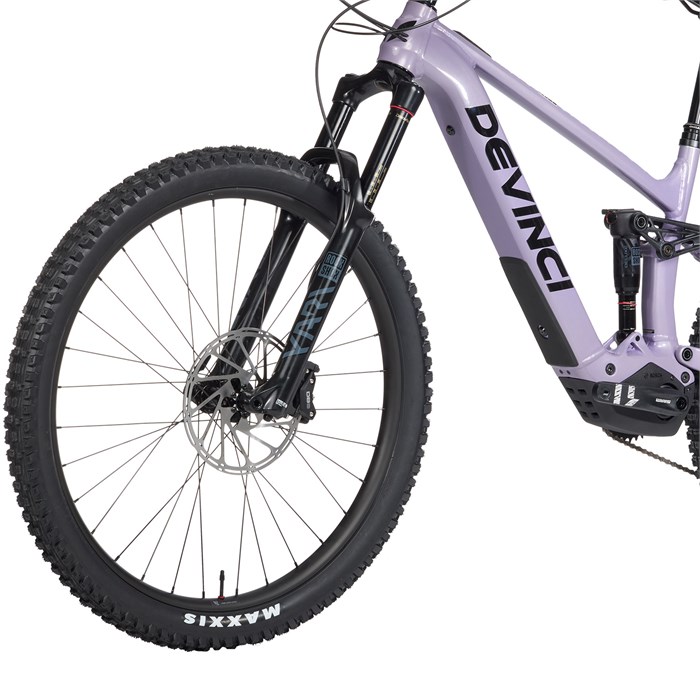

• Fork: RockShox Yari RC More

  Fork


  RockShox Yari RCHard-hitting and capable enough to handle the unique rigors of enduro and E-MTB riders alike, Yari features a stiff chassis combined with the DebonAir™ air spring and proven Motion Control™ damper. Yari is the enduro option for those who ride hard on a budget.

  Fork Adjustments - RC damper for rebound adjustment and low-speed compression adjustment.


• Stanchion Diameter (mm): 35
• Fork Travel (mm): 160

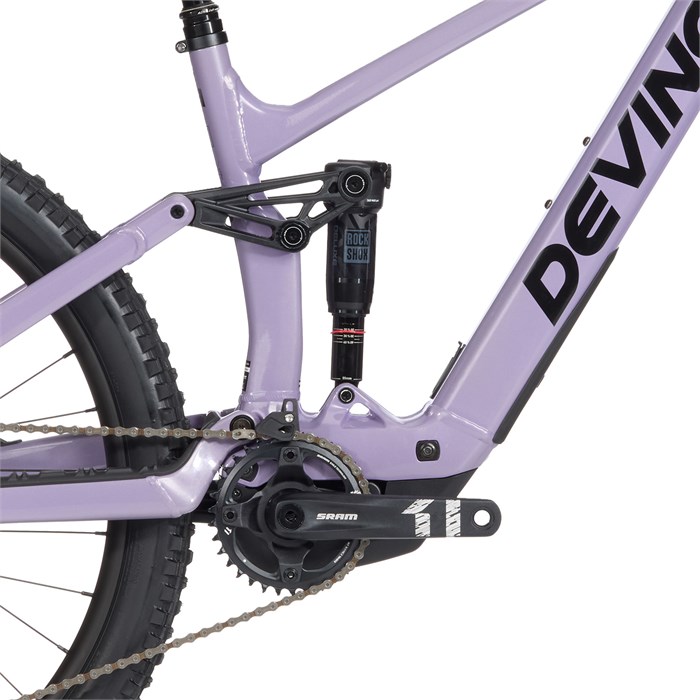

• Rear Shock: RockShox Deluxe Select More

  Rear Shock


  RockShox Deluxe SelectDeluxe Select delivers a lightweight package with the same proven damping performance of the entire Deluxe family. Featuring the DebonAir+ air spring with the ability to tune both positive and negative air volume paired with a wider range of Rebound adjustment. Maximized adjustability in a streamlined and minimalist package, accessible at your fingertips.

  Shock Adjustments - External Rebound Adjustment / Air Spring Pressure



• Rear Travel (mm): 150
• Drive Unit: Bosch Performance Line SX More

  Drive Unit


  Bosch Performance Line SXThe Performance Line SX is the lightest and most compact drive unit from Bosch eBike Systems When riding in a sporty style with a high cadence, it supports you disproportionately to your performance with peaks of up to 600 watts of motor power. With its sensitive and reactive response behavior, it is ideal for all those who ride in sporty style with electric support and are looking for a training effect


• Battery: Bosch CPT 400Wh
• Shifters: SRAM NX Eagle More

  Shifters


  SRAM NX EagleThe NX Eagle™ trigger shifter means on-demand gear selection throughout the entire wide range Eagle™ cassette. The massive range means you never have to worry about having the right gear for the terrain.

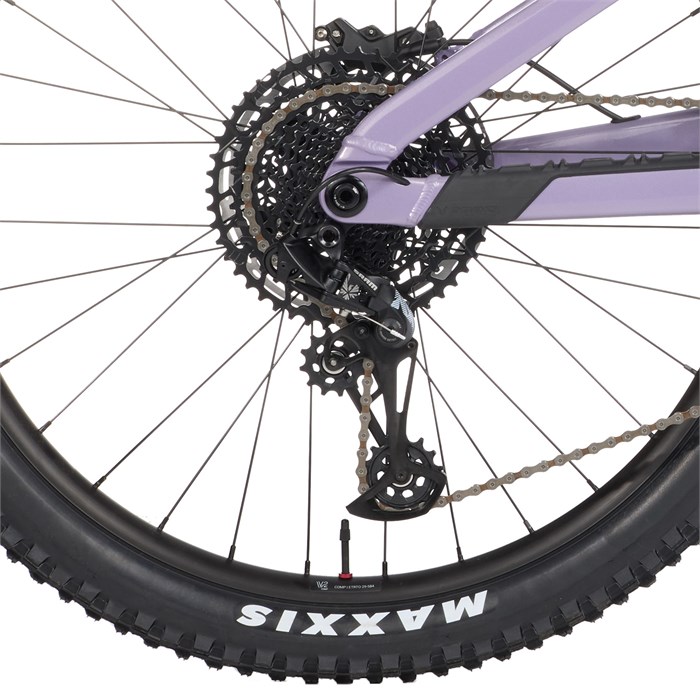

• Rear Derailleur: SRAM NX Eagle, 12-Speed More

  Rear Derailleur


  SRAM NX Eagle, 12-SpeedThis new NX Eagle™ derailleur features the proven SRAM 1x-specific X-HORIZON™ design. The larger, 14-tooth X-SYNC™ lower pulley easily facilitates 11- to 50- and 10- to 50-tooth cassette capacity, and also adds to NX Eagle´s overall smooth-pedaling feel. The Type-3 ROLLER BEARING CLUTCH™ provides quiet, consistent performance and durability.

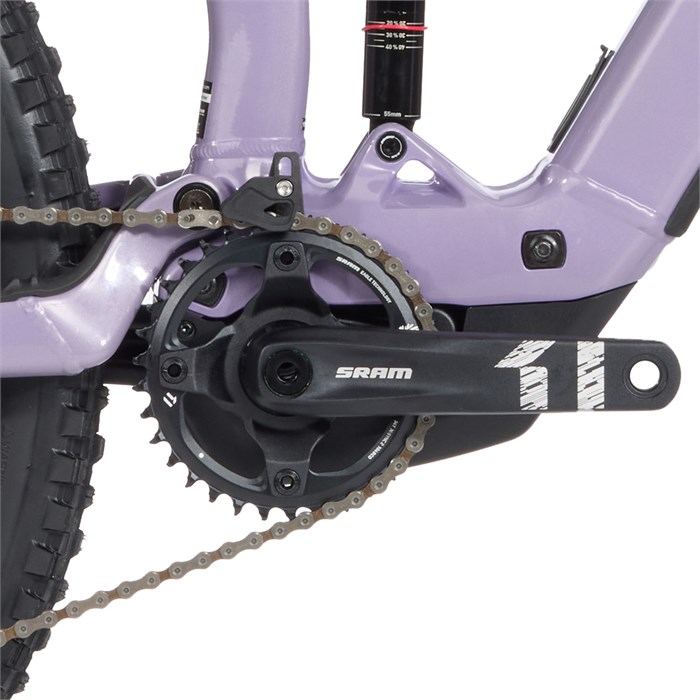

• Crankset: SRAM NX Eagle More

  Crankset


  SRAM NX EagleThe SRAM NX crankset delivers consistent performance every time out. Featuring SRAM’s X-SYNC™2 tooth profile chainring, the NX crankset is engineered for complete chain control. Each tooth’s thickness is precisely toleranced and controlled to work seamlessly with the chain’s inner and outer links.

  FEATURES
  • 6000 series forged aluminum arms



• Cassette: SRAM PG1210 Eagle, 11-50t
• Chain: SRAM SX Eagle, 12-Speed
• Pedals: Not Included
• Brake Levers: SRAM DB8 More

  Brake Levers


  SRAM DB8DB8 is SRAM´s simple, robust, and powerful brake for riders who prefer to set and forget. The low maintenance Mineral Oil system uses proven lever technologies and features easy adjustment access and superior ergonomic comfort. Code-like power is no surprise, as DB8 utilizes similar caliper architecture and existing brake pads.


• Brake Calipers: SRAM DB8
• Rotors: SRAM Centerline
• Headset: FSA Orbit | 1.5 | Zero Stack

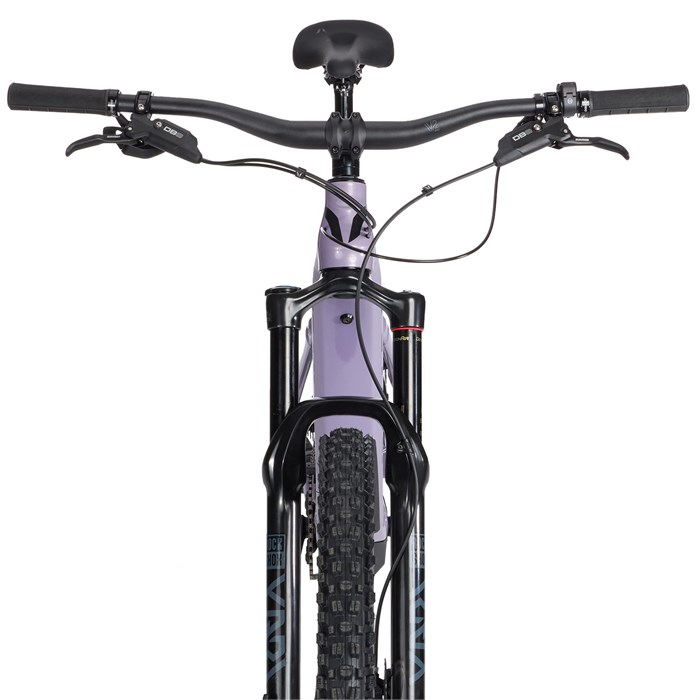

• Handlebar: V2 Pro | B:35mm | R:30mm | W:800mm
• Bar Tape/Grips: Devinci Performance | w/lock-on
• Stem: V2 Pro | B:35mm | L:40mm | 0°
• Saddle: SDG Belair Max eMTB
• Seatpost: TranzX Dropper 31.6mm
• Wheelset: V2 Comp
• Hubs: Front: Novatec D791SB-B15 | 6bolts | TA 15x110mm / Rear: Formula | DHT-148 | 6 Bolts TA 12x148 BOOST
• Rims: Rear: V2 Comp | 29mm inner | TR
• Spokes: Sapim Stainless 14G w/Nylok
• Tires: Maxxis
• Front Tire: Maxxis Assegai 2.5" | 3C MaxxTerra, EXO+, WT, TR More

  Front Tire


  Maxxis Assegai 2.5" | 3C MaxxTerra, EXO+, WT, TRGreg Minnaar’s signature tire – the Maxxis Assegai – provides tenacious, predictable grip across the entire profile no matter the lean angle. The Assegai can be used front and rear for a surefooted feel or as a front paired with a faster rolling rear tire.
  • 3C MaxxTerra: A triple compound ideal for trail riding in all conditions - offers more traction than 3C MaxxSpeed, yet provides better treadwear and less rolling resistance than 3C MaxxGrip.
  • EXO+: Durable 60 TPI casing, legendary EXO puncture protection in the sidewalls, and a small butyl insert around the bead to protect from pinch flats and help prevent rim damage.
  • Wide Trail (WT): Optimizes the tire´s tread layout and profile for today´s modern, wider rims.
  • Tubeless Ready (TR): Tubeless tires allow riders to run lower air pressures for improved traction, lower rolling resistance, and less chance of flatting.



• Rear Tire: Maxxis Minion DHR II 2.4" | 3C MaxxTerra, EXO+, WT, TR More

  Rear Tire


  Maxxis Minion DHR II 2.4" | 3C MaxxTerra, EXO+, WT, TRWith side knobs borrowed from the legendary Minion DHF, but widened to provide more support, the DHR II corners like no other. The center tread features ramped leading edges to improve acceleration and sipes to create a smooth transition when leaning the bike. Paddle-like knobs on the center tread dig in under hard braking and help keep the bike under control.
  • 3C MaxxTerra: A triple compound ideal for trail riding in all conditions - offers more traction than 3C MaxxSpeed, yet provides better treadwear and less rolling resistance than 3C MaxxGrip.
  • EXO+: Durable 60 TPI casing, legendary EXO puncture protection in the sidewalls, and a small butyl insert around the bead to protect from pinch flats and help prevent rim damage.
  • Wide Trail (WT): Optimizes the tire´s tread layout and profile for today´s modern, wider rims.
  • Tubeless Ready (TR): Tubeless tires allow riders to run lower air pressures for improved traction, lower rolling resistance, and less chance of flatting.



• Warranty: Limited Lifetime
